TY511 LCD RTU

LCD display for data and configuration
Rich I/O, local data storage for back up
Automatic alarm trigger

TY511: LCD RTU

Industrial cellular RTU for data acquisition, storage, control, alarm and transmission.
● 2-RS232, 2-RS485, 8-DI, 8-DO, 8-ADC,
● 2-Pulse, 3-Power output, 1-SD slot
● Supports up to 16MB data storage and additional SD card data storage(Up to 16G)
● LCD display of data and configuration*
● Modbus TCP/RTU, MQTT, TCP/UDP protocols
● SMS alarm and AT command
● 4G LTE or 3G for option
* Customized firmware

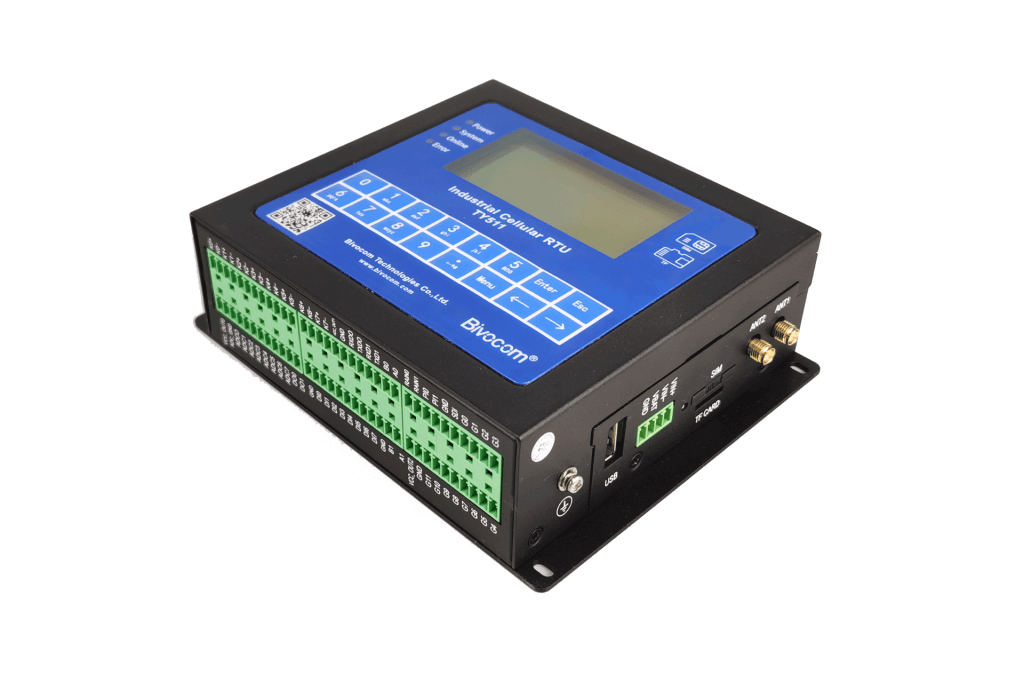

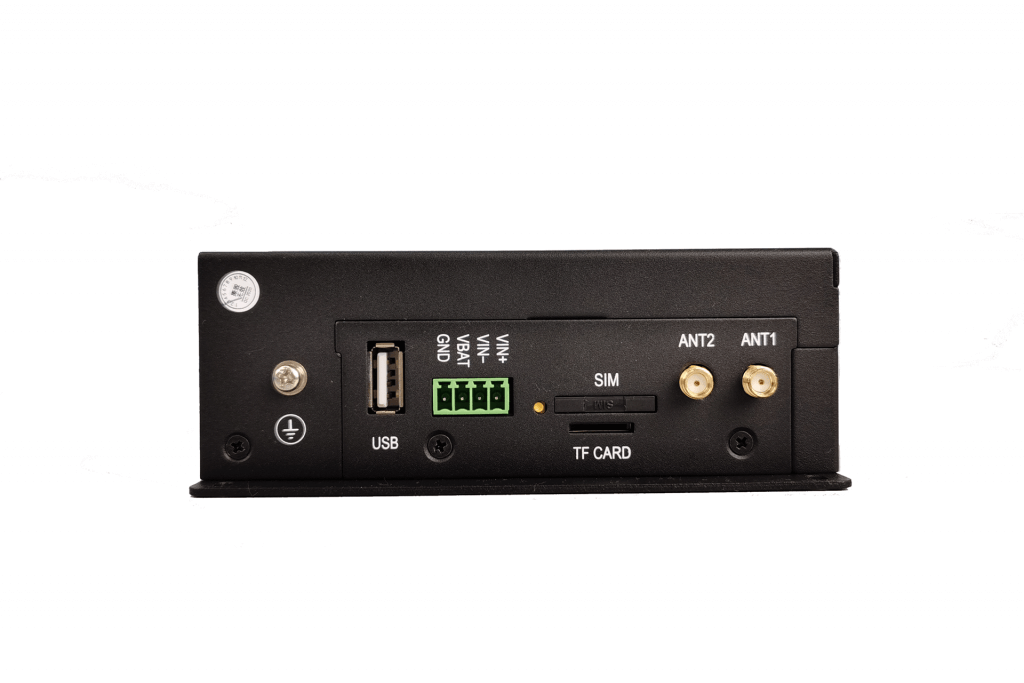

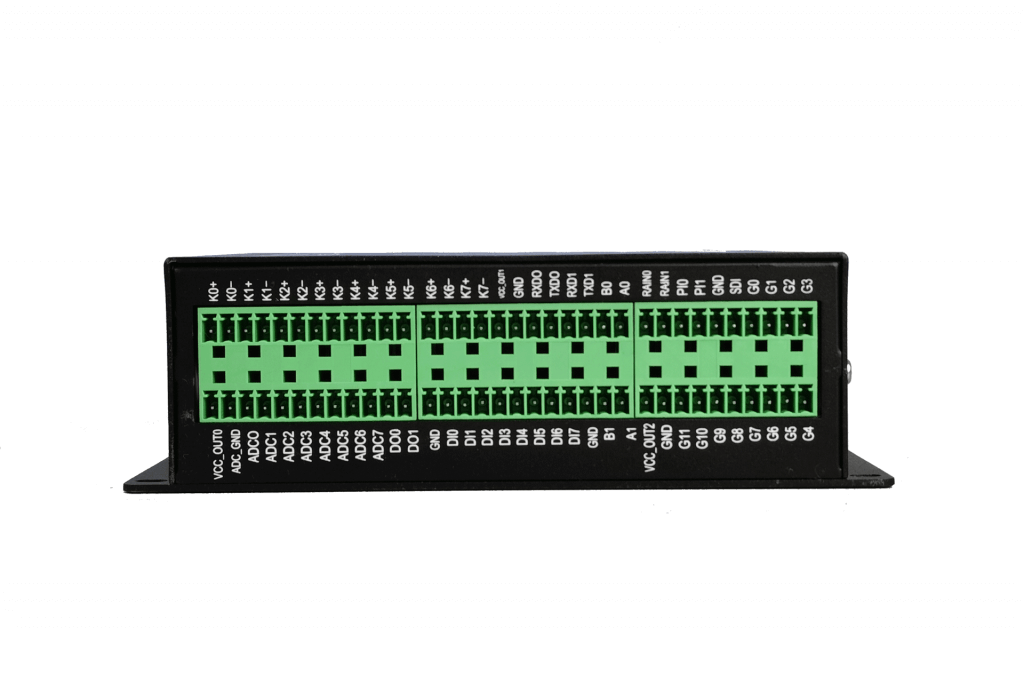

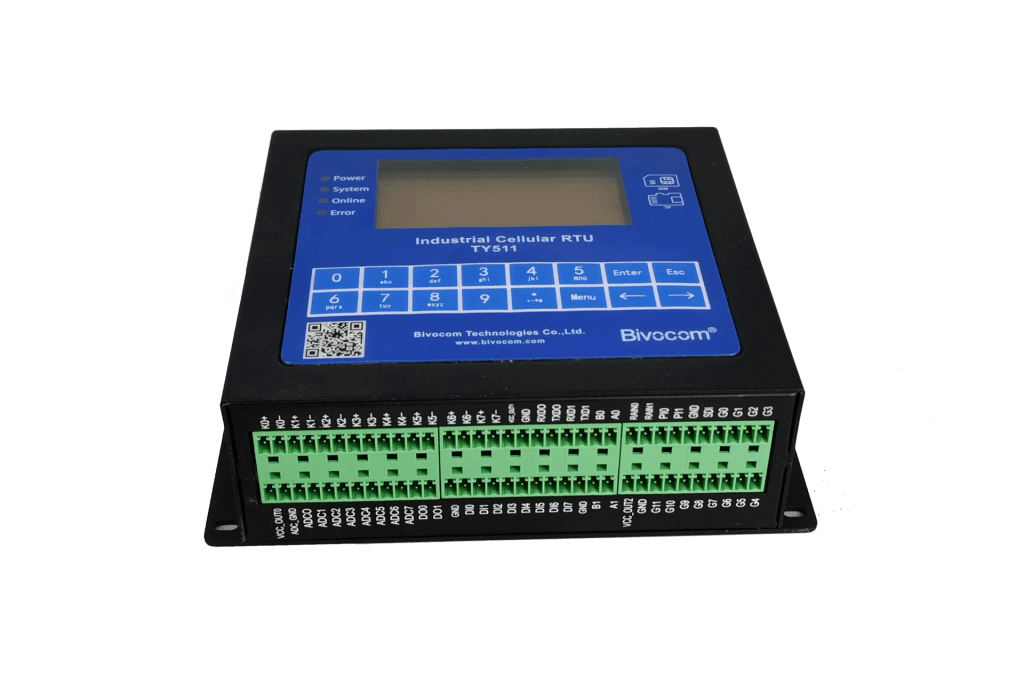

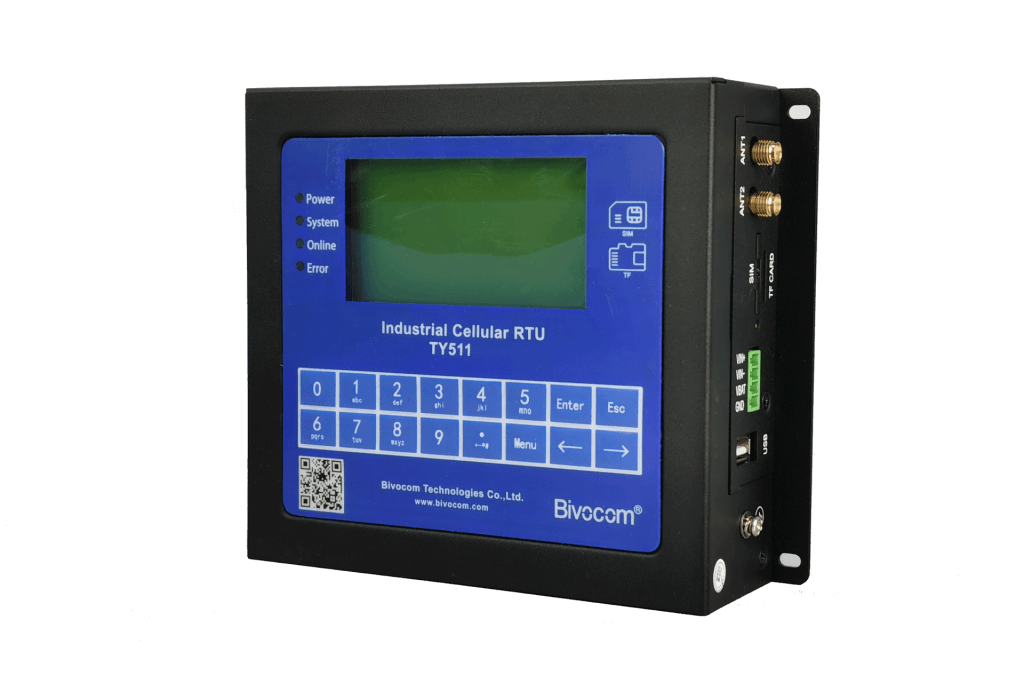

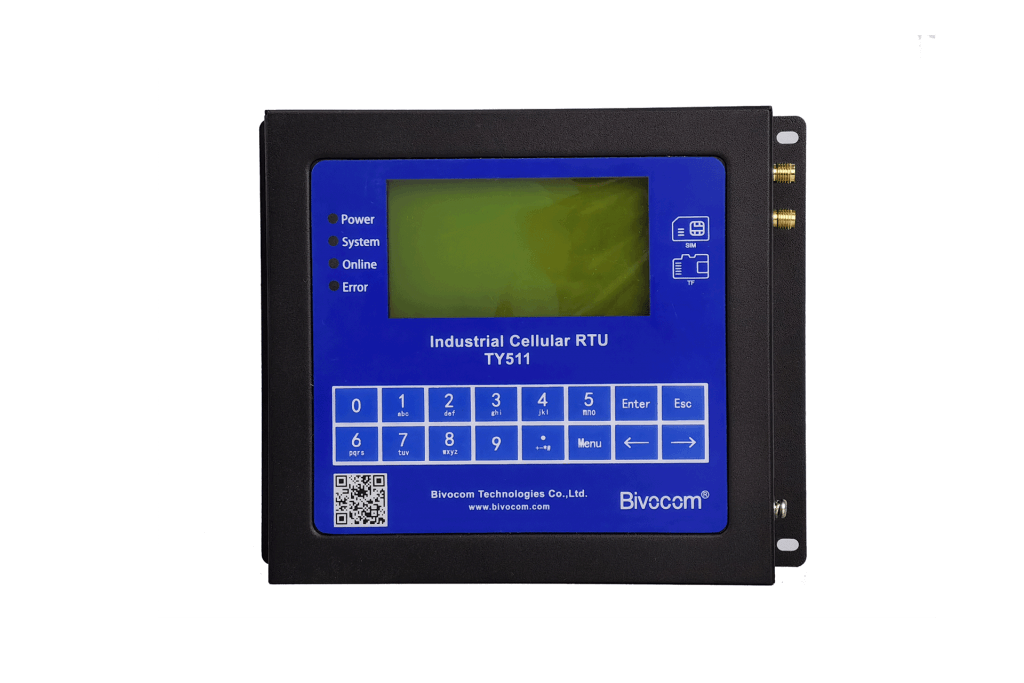

bivocom cellular rtu 511
TY511
cellular-rtu lcd-rtu-ty511
bivocom cellular rtu 511
bivocom cellular rtu 511
cellular-rtu lcd-rtu-ty511
bivocom cellular rtu 511
Buy Now
  • Overview
  • Specifications
  • Case Study
  • Order Information
TY511 Series RTU is a type of industrial cellular remote telemetry unit, which adopts high-powered industrial 32-bits CPU, with multi-layer software detection and hardware protection mechanism to ensure reliability and stability of the device.

It supports worldwide carrier 4G/3G/2G cellular network FDD-LTE, TDD-LTE, and HSPA/UMTS/WCDMA, EVDO, TD-SCDMA, EDGE, CDMA 1X and GPRS, to realize real time data acquisition, storage, control, alarm and transmission, as well as security of data transmission.

TY511 has rich interfaces, including tipping bucket rain gauge input, RS232, RS485, I/O, etc., and it has been widely used for remote monitoring and control applications, such as, hydrology, water resources, water pollution, water treatment, reservoir dam, mountain flood disaster, geological disaster, meteorology, environmental protection, new energy resources, etc.
*Customized firmware
System
  ● Flash: 16MB
  ● SRAM: 256KB

LCD Screen:
  ● 128*64 dot matrix, backlight

Cellular Interface
  ● Antenna Connector: 1, or 2 × 50 Ω SMA Female(Option)
  ● SIM Slot: 1

Serial Interface
  ● Connector: Terminal block, 3.5 mm female socket with lock
  ● Ports: 2 × RS232+ 2 × RS485
  ● Baud Rate: 100bps to 230400bps
  ● 15KV ESD Protection

I/O
  ● Connector: Terminal block, 3.5 mm female socket with lock
  ● DI: 8(optical isolation)
     Logic 0: Wet contact 0-3VDC, or dry contact close
     Logic 1: Wet contact DC 5-30V, or dry contact open
  ● Relay: 8
     Max switching voltage: 30VDC/250VAC
     Max switching current: 4A
     Max switching power : 120W
  ● ADC: 8
     16-bit AD, supports 4-20mA current signal input, and 0-5V voltage signal input is optional
  ● Power Output: 3
     Default is 12V. Rated output current of 1 power output is 1A, and total rated output current of 3 power outputs is 2A, built in overcurrent pr otection
  ● Pulse Input: 2
     Tipping bucket rain gauge input(low level) 2x pulse input(high level)
  ● DO(Digital Output): 2 (optical isolation, Open Collector)
     Rated drive current : 50mA
     Rated drive voltage: 35V

USB Port (Reserved)
   ● Port: 1
      For external display screen port, able to connect 192*64 dot matrix STN LCD screen with keyboard

Micro SD Slot
    ● Port: 1-TF Card, support up to 16G data storage

GPS (Optional)
    ● From Cellular module, not standalone GPS module
    ● Antenna Connector: 1 × 50 Ω SMA Female

Power Requirements
  ● Connector: Terminal block, 3.5 mm female socket with lock
  ● Standard Power: DC 12V/1.5A
  ● Input Voltage: 5-35 VDC

Software
  ● Serial Port: MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP), DNS
  ● Management: Config Tool, Cloud DMP (Device Management Platform)*

Physical
  ● Ingress Protection: IP30
  ● Housing & Weight: Metal, 770g (1.70lbs)
  ● Dimensions: 54.2×127×46.6mm (6.07x5x1.83 inches),without antenna and accessories
  ● Mounting: Desktop, Wall mount

Environmental
  ● Operating Temperature: -35°C to +75°C (-31℉ to +167℉)
  ● Storage Temperature: -40°C to +80°C (-40℉ to +176℉)
  ● Humidity: 0% to 93% (non-condensing) at 25°C/77℉

Others
  ● LED Indicators: System, Online, Power, Error
  ● Warranty Period: Standard: 12 Months, Extended: 2-5 Years*(Please refer to warranty policy)
  ● Approvals: CE*, RCM*, NBTC*, FCC*(*Under Progress)
Item TY511
System
Flash
SRAM
16MB
256KB
Cellular Interface
Antenna Connector
SIM Slot
1 × 50 Ω SMA Female, or 2(Option)
1
Serial Interface
Ports
2 × RS232+ 2 × RS485
Analog Input
Ports
8 x 16-bit AD, supports 4-20mA current signal input, and 0-5V voltage signal input is optional
Digital Input
Ports
8(optical isolation)
Logic 0: Wet contact 0-3VDC, or dry contact close
Logic 1: Wet contact DC 5-30V, or dry contact open
Relay
Ports
8
Max switching voltage: 30VDC/250VAC
Max switching current: 4A
Max switching power : 120W
Power Output
Ports
3
Default is 12V. Rated output current of 1 power output is 1A, and total rated output current of 3 power outputs is 2A, built in overcurrent pr otection
Pulse quantity
Ports
2x tipping bucket rain gauge input(low level)
2x pulse input(high level)
DO(Digital output)
Ports
2 (optical isolation, Open Collector)
Rated drive current : 50mA
Rated drive voltage: 35V
USB Port (Reserved)
Ports
1
For external display screen port, able to connect 192*64 dot matrix STN LCD screen with keyboard
SD card slot
Ports
1
Support up to 16G
Software
Network Protocols


Management
MQTT*, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP), DNS
Config Tool, Cloud DMP (Device Management Platform)*
Power Requirements
Standard Power
Input Voltage
DC 12V/1.5A
5-35 VDC
Physical
Ingress Protection
Housing & Weight
Dimensions

Mounting
IP30
Metal, 770g (1.70lbs)
54.2×127×46.6mm (6.07x5x1.83 inches),without antenna and accessories
Desktop, Wall mount
Environmental
Operating Temperature Operating Temperature -35°C to +75°C (-31℉ to +167℉)
Others
LCD Screen
LED Indicators
Approvals
Warranty

128*64 dot matrix, backlight
System, Online, Power, Error
CE*, RCM*, FCC*(* Under progress)
Standard: 12 Months
Extended: 2-5 Years*(Please refer to warranty policy)

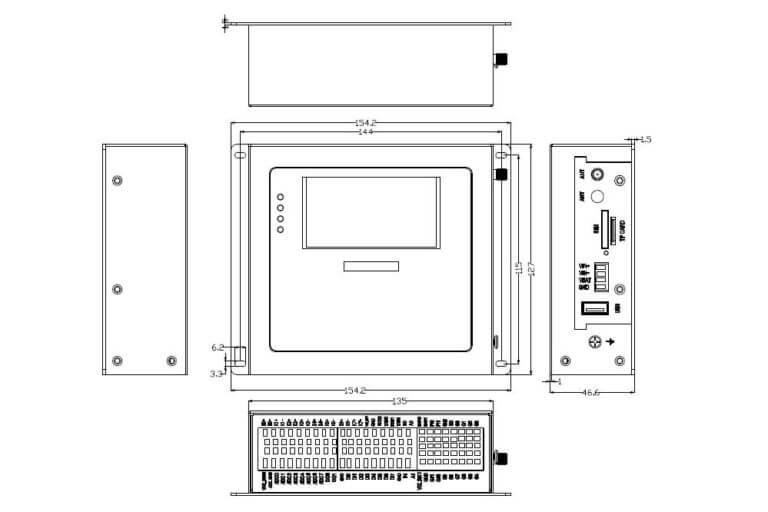

  Dimension(mm)
cellular-rtu lcd-rtu-ty511
Load More
Fail to load posts. Try to refresh page.
Read More
Model
 Part Number*
 Description
 Frequency Band*
TY511-LF
 TY511-L<...>
 4G, 2-RS232, 2-RS485, 8-DI, 8-DO, 8-ADC, 2-Pulse, 3-Power output, 1-SD slot
4G LTE CAT 4
EMEA: B1/B3/B5/B7/B8/B20/B38/B40/B41
ANZ/LATAM: B1/B3/B5/B7/B8/B28
NA: B2/B4/B5/B12/B13/B14
TY511-W
 TY511-W<..>
3G, 2-RS232, 2-RS485, 8-DI, 8-DO, 8-ADC, 2-Pulse, 3-Power output, 1-SD slot
3G/HSPA/UMTS/WCDMA
Global: 800/850/900/1900/2100
Model:
   1. TY511-LF
       4G LTE CAT4 LCD RTU
   2. TY511-W
       3G/WCDMA/UMTS/HSPA LCD RTU

Part Number:
   1. TY511-L<1>-<2>
   2. TY511-W<1>-<2>

Decription:
   1. 4G, 2-RS232, 2-RS485, 8-DI, 8-DO, 8-ADC, 2-Pulse, 3-Power output, 1-SD slot
   2. 3G, 4G, 2-RS232, 2-RS485, 8-DI, 8-DO, 8-ADC, 2-Pulse, 3-Power output, 1-SD slot
       Note:
       ● <1>, means different module for different countries and regions
       ● <2>=G, GPS(from cellular module, not standalone GPS module)

Frequency band:
   1. 4G LTE CAT 4
   ● EMEA:B1/B3/B5/B7/B8/B20/B38/B40/B41
   ● ANZ/LATAM:B1/B3/B5/B7/B8/B28
   ● NA:B2/B4/B5/B12/B13/B14

   2. 3G/HSPA/UMTS/WCDMA
   ● Region: 900/2100MHz, or 850/1900/2100MHz
   ● Global: 800/850/900/1900/2100
1. <1> in part number means different frequency band for different market, <2> means the device supports GPS(G) or not, please ask Bivocom sales representatives or your local partner for more information.

2. Frequency band in the table are just part of our models, if you couldn't find the frequency band in your regions, please feel free to contact us.
