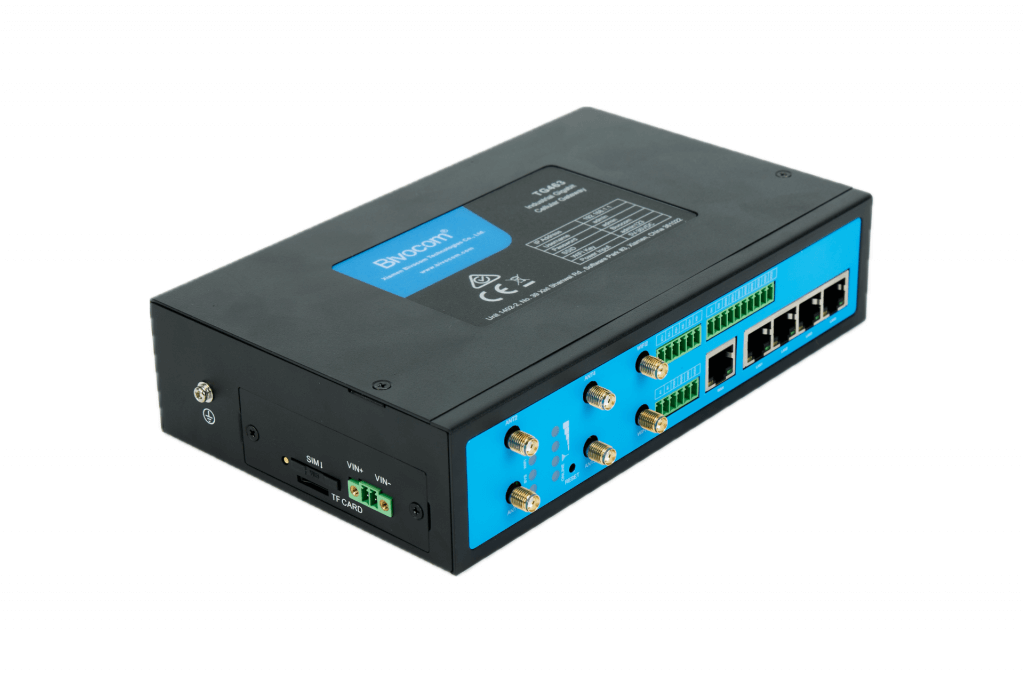

TG463 Industrial 5G NR IoT Gateway

Designed for IoT, M2M and eMBB
5G Sub-6, SA/NSA, 2.4G/5G WIFI
5-GE(4 PoE),  1-RS232, 1-RS485, 2-DI, 3-ADC, 3-DO

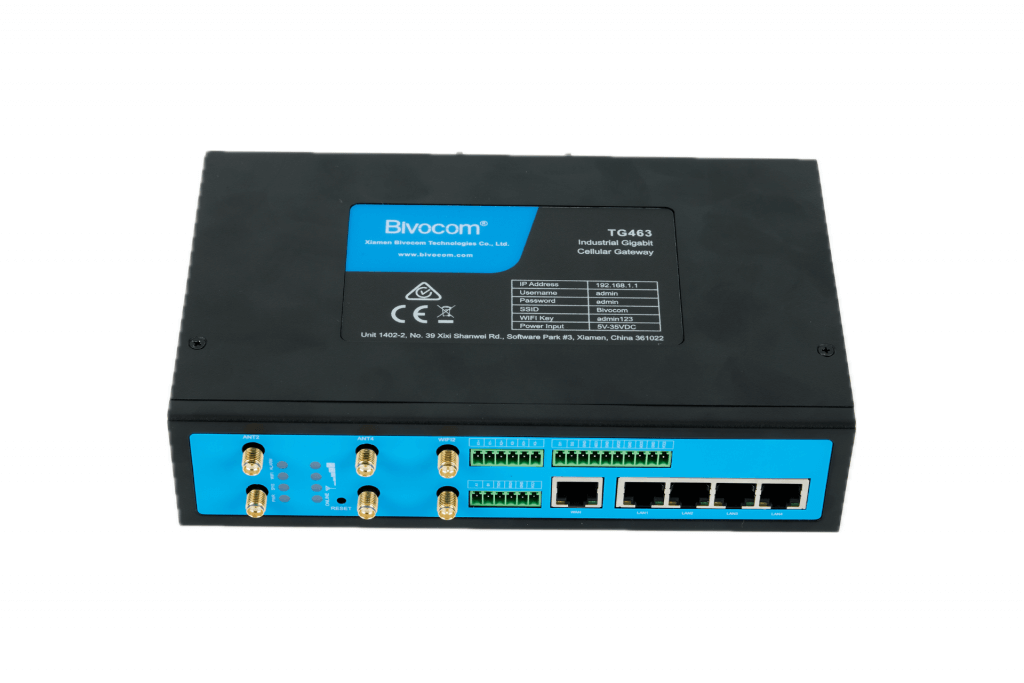

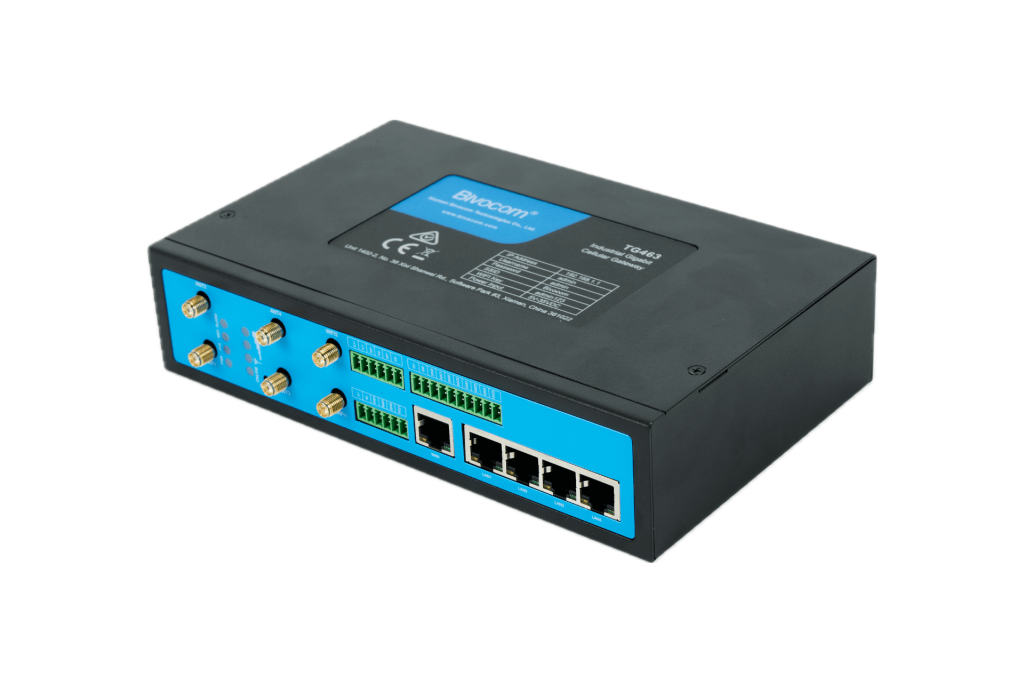

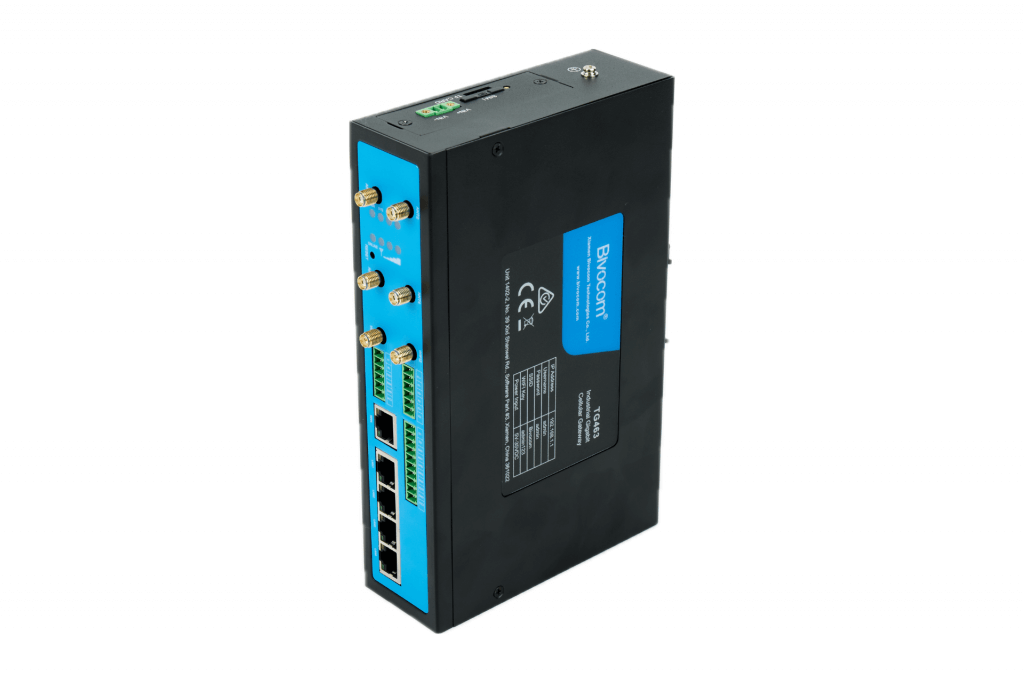

TG463: Industrial 5G IoT Gateway
5G Brings Evolutionary Changes To The IoT
● 5G NR Sub-6 bands with SA and NSA dual modes
● Global 5G and LTE-A coverage, back support 3G
● Dual SIM, WWAN and WAN failover
● 2.4G/5G WIFI (802.11b/n/g/ac)
● 5x Gigabit Ethernet port (4 PoE PSE, 802.3af)
● 1-RS232, 1-RS485, 2-DI, 3-ADC, 3-DO(Relay)
● Support Modbus RTU/TCP, MQTT, SNMP, VPN
● Linux OS based openwrt platform for secondary development
  • Overview
  • Specifications
  • Case Study
  • Order Information
The TG463 series is a 5G NR IoT gateway designed for IoT, M2M, and eMBB applications requiring higher speed, lower latency data transmission, and capacity of edge computing. It’s Linux OS based openWrt platform allows developers and engineers to program and do secondary development on the hardware themselves. In addition, its rich I/O is ideal for connecting with diverse field equipment and sensors and transferring the data to the cloud server.

The TG463 series IoT gateway can be used for a wide variety of applications, such as smart pole, smart cities, smart office, smart buildings, smart traffic light, digital signage advertising, vending machines, ATM, etc.
* option feature

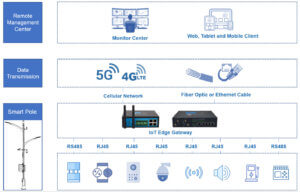

Smart Pole Diagram
System
  ● CPU:  32-bit, 880MHz, dual core
  ● Flash:  32MB (Extendable to 128MB, Option)
  ● RAM:  256MB DDR3

Cellular Interface
  ● Antenna Connector:
     4 × 50 Ω SMA Female(5G Version TG463-NR)
     2 × 50 Ω SMA Female(4G Version TG463-LF)
  ● SIM Slot:  1 or 2(Option), Standard SIM, 2FF

Ethernet Interfaces
  ● Ports:  5 x RJ45 (1-WAN, 4-LAN or 5-LAN, configurable via Web UI)
  ● Data Rate:  10/100/1000Mbps (Auto-Sensing), Auto MDI/MDIX
  ● PoE:  4 PoE PSE, 802.3af(Option)


Serial Interface

● Connector:  Terminal block, 3.5 mm female socket with lock
  ● Ports:  1 x RS232, 1 x RS485, 15KV ESD protection
  ● Baud Rate:  100bps to 230400bps

Wi-Fi
  ● Antenna Connector:  4 × 50 Ω SMA Male
  ● Standard 2.4G/5GHz
     IEEE 802.11b/g/n/ac, supporting AP and Client modes
  ● Transmission Rate:  IEEE802.11b/g: Up to 54Mbps
     IEEE802.11n: Up to 300Mbps
     IEEE802.11ac: Up to 1.7Gbps
  ● Security Open,WPA,WPA2,WPA/WPA2, Enterprise, Radius

GNSS (Optional)
  ● Module: Built-in independent GPS module, or GNSS from cellular module

  ● Antenna Connector: 1 × 50 Ω SMA Female

I/O
  ● Connector:  Terminal block, 3.5 mm female socket with lock
  ● ADC:  3
    12-bit AD, supports 4-20mA current signal input, or 0-5V voltage signal input (Option)
  ● DI:  2
     Logic 0: Wet contact 0-3VDC, or dry contact close
     Logic 1: Wet contact DC 5-30V, or dry contact open
  ● DO(Relay): 3
     Maximum switch voltage 30VDC/250VAC
     Maximum switch current: 5A
  ● Power Output:  2-channel 12V, current 1A
     Built-in overcurrent protection, for external devices DC power input

External Storage
  ● Micro SD 1 x TF card, Up to 32GB
  ● Usage: User Program, Data Storage and Firmware Upgrade

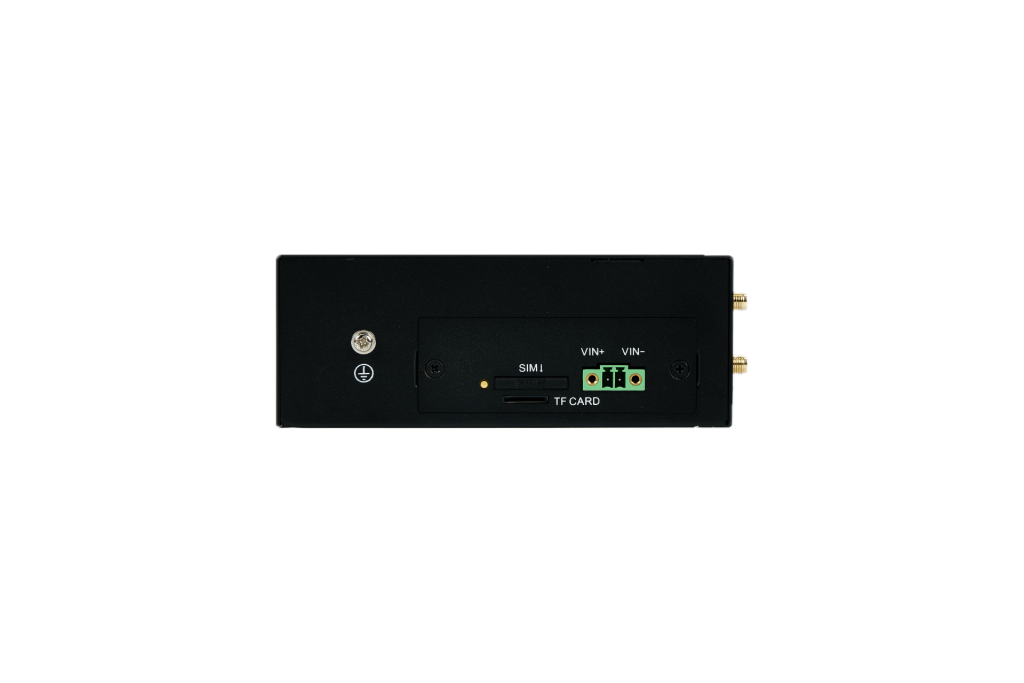

Power Supply and Consumption
  ● Connector:  2-pin with 3.5 mm terminal block
  ● Standard:  DC 12V/1.5A
  ● Power Input:  5-35 VDC
  ● Idle Mode:  253〜360mA@12VDC
  ● Working Mode:  318〜425mA@12VDC

Software
  ● Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH, etc.
  Serial Port: MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP)
  ● VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN
  ● Firewall:  ACL/DMZ/Port Mapping/MAC Binding
  ● Management:  Web, CLI, SMS, Cloud DMP (Device Management Platform)
  ● Reliability:  WAN Failover, Hardware & Software watchdog
  ● Secondary Development:  OpenWrt based, support Python, LUA and SDK

Physical

  ● IP Rating:  IP30
  ● Housing:  Metal
  ● Weight:  1,000g(2.2lbs) without accessories
  ● Dimensions:  207*124*47mm(8.15*4.88*1.85in)

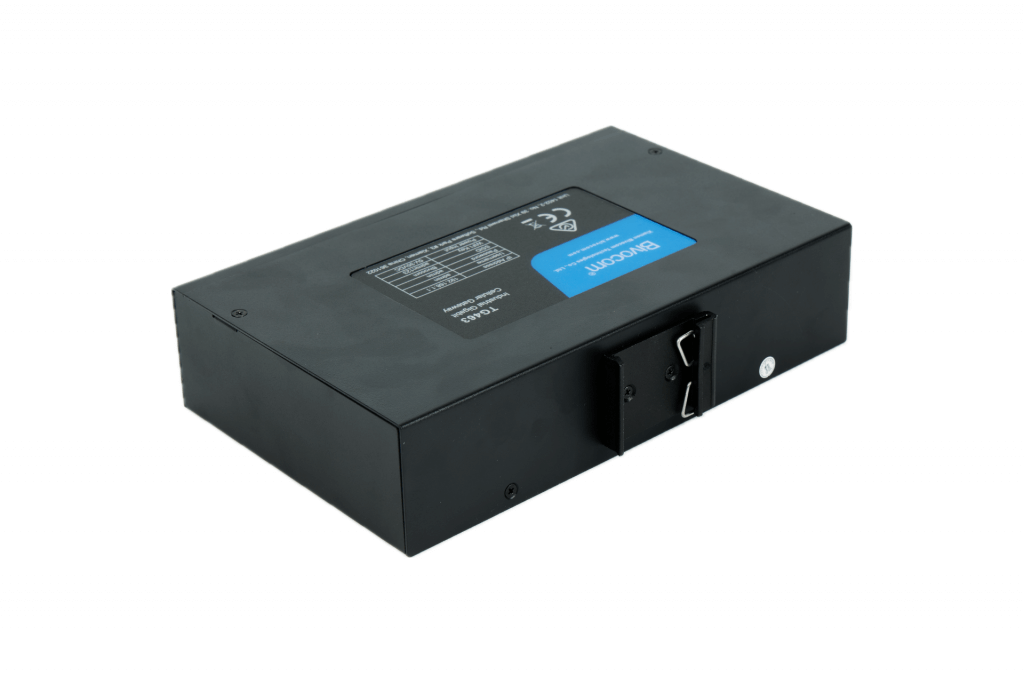

  ● Mounting: Din-rail, Wall mount, Desktop

Environmental

  ● Operating Temperature:  -35°C to +75°C (-31℉ to +167℉)
  ● Storage Temperature:  -40°C to +80°C (-40℉ to +176℉)
  ● Relative Humidity: 93% ± 3% (non-condensing) at 25°C/77℉

Others
  ● LED Indicators:  Signal strength, WIFI, System(SYS), Online, Power (PWR), Alarm
  ● Built-in:  Watchdog, RTC, Timer
  ● Certifications:  CE*, RCM*, FCC*
  ● Warranty Standard:  12 Months Period Extended: 2-5 Years

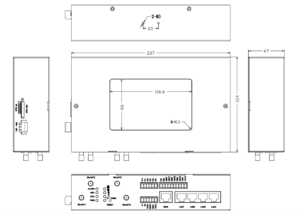

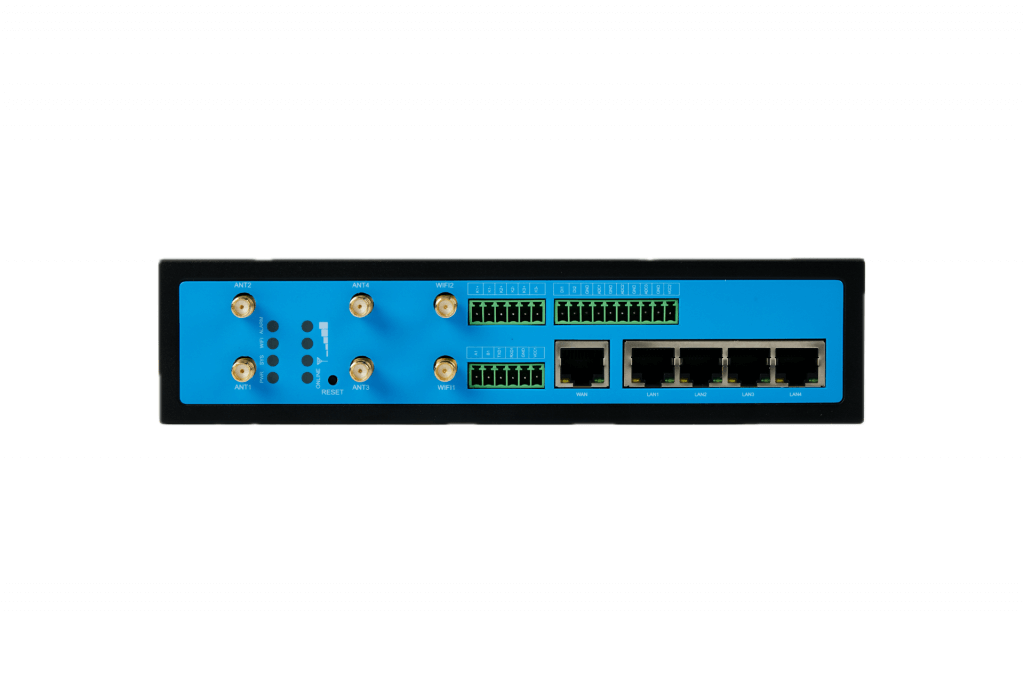

Dimension(mm) and Ports
industrial-5g-nr-iot-gateway-tg463

Model:

   1. TG463-NR
       5G NR IoT Gateway
   2. TG463-LF
       4G LTE IoT Gateway

Part Number:
   1. TG463-NR<1><2>-<3>
   2. TG463-L<1><2>-<3>

Description:
   1. 5G NR IoT Gateway, 5-GE, 1-RS232, 1-RS485, 2-DI, 3-ADC, 3-DO
   2. 4G LTE IoT Gateway, 5-GE,1-RS232, 1-RS485, 2-DI, 3-ADC, 3-DO
       ● <1>, means different module for different countries and regions
       ● <2>=DS, Dual SIM(Dual SIM on single module, failover)
       ● <2>=DM, Dual Module(Dual SIM on dual module, load balance)
       ● <3>=W, WIFI
       ● <3>=G, GPS(standalone GPS)

Frequency band:
  1. TG463-NR
      ● 5G NR Sub-6
      n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79
      LTE FDD:B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/B25/B26/B28/B29/B30/B32/B66/B71
      LTE TDD: B34/B38/39/B40/B41/B42/B43/B48
  2. TG463-LF
     ● 4G LTE CAT 6 Version
     EMEA&APAC:B1/B3/B5/B7/B8/B20/B28
     NA: B2/B4/B5/B7/B12/B13/B25
     ● 4G LTE CAT 4 Version
     EMEA: 1/B3/B5/B7/B8/B20/B38/B40/B41
     ANZ/LATAM: B1/B3/B5/B7/B8/B28
     NA: B2/B4/B5/B12/B13/B14

Standard Packing List:
1 x TG463 Gateway
1 x Power Adapter (DC 12V/1.5A, EU/US/UK/AU plug option)
4 x Mag-mount Cellular Antenna (SMA Male, 1 meter, 5dBi), 4G version has 2 antennas only
1 x RS232 Cable (DB9 Female, 1 meter)
1 x Ethernet Cable (1 meter)
1 x 10-Pin Terminal Block
2 x 6-Pin Terminal Block
1 x Din-rail mounting kits
1 x Quick Start Guide (Printed)*
1. <1> in part number means different frequency band for different market, <2> means the router comes with dual sim(DS) or dual module(DM), <3> means if the router comes with WIFI(G), or GPS(G), please ask Bivocom sales representatives or your local partner for more information.

2. Frequency band in the table are just part of our models, if you couldn't find the frequency band in your regions, please feel free to contact us.

3. Dual SIM means dual SIM based on single module for failover, Dual module means dual sim based on separate dual module for load balance.
