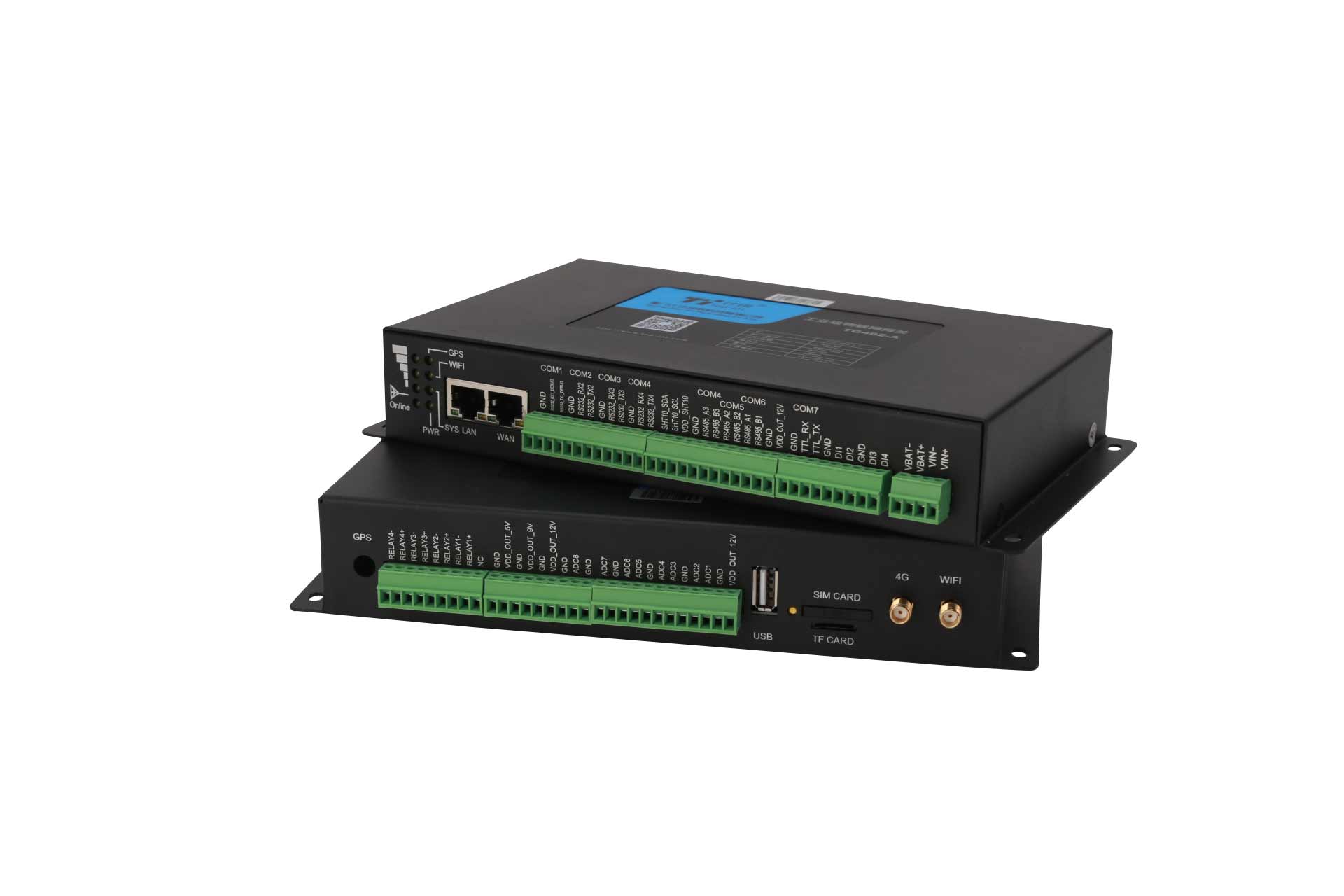

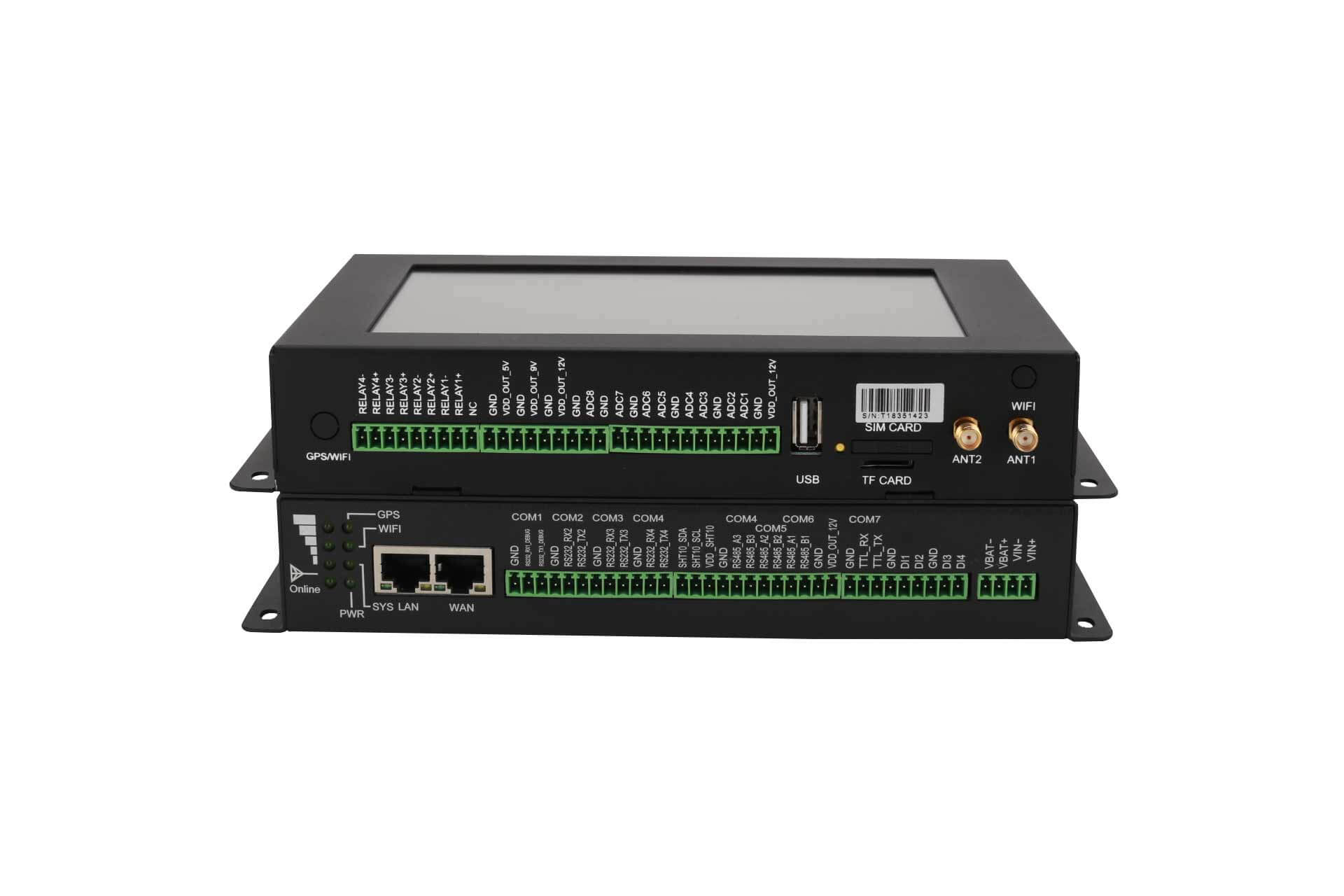

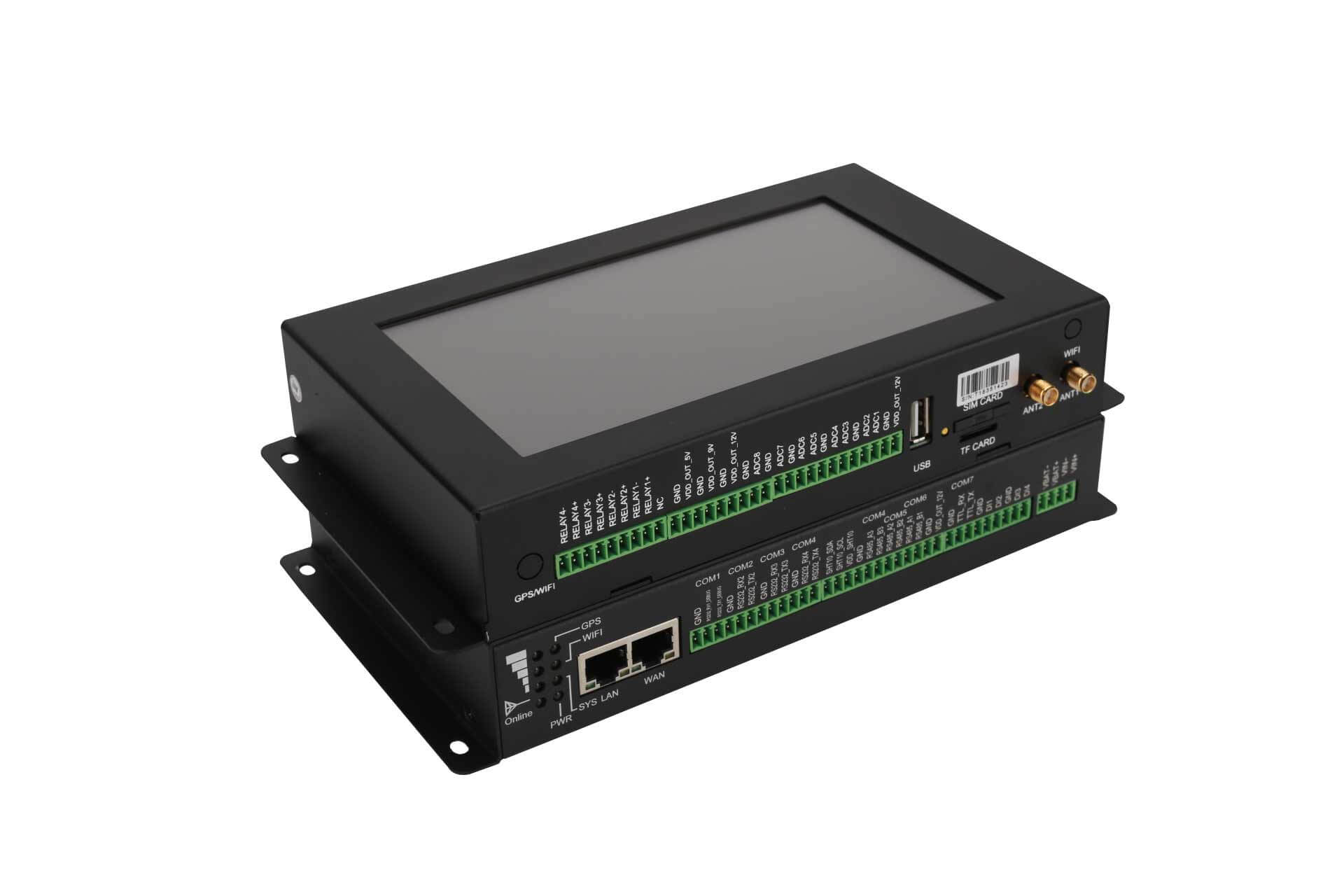

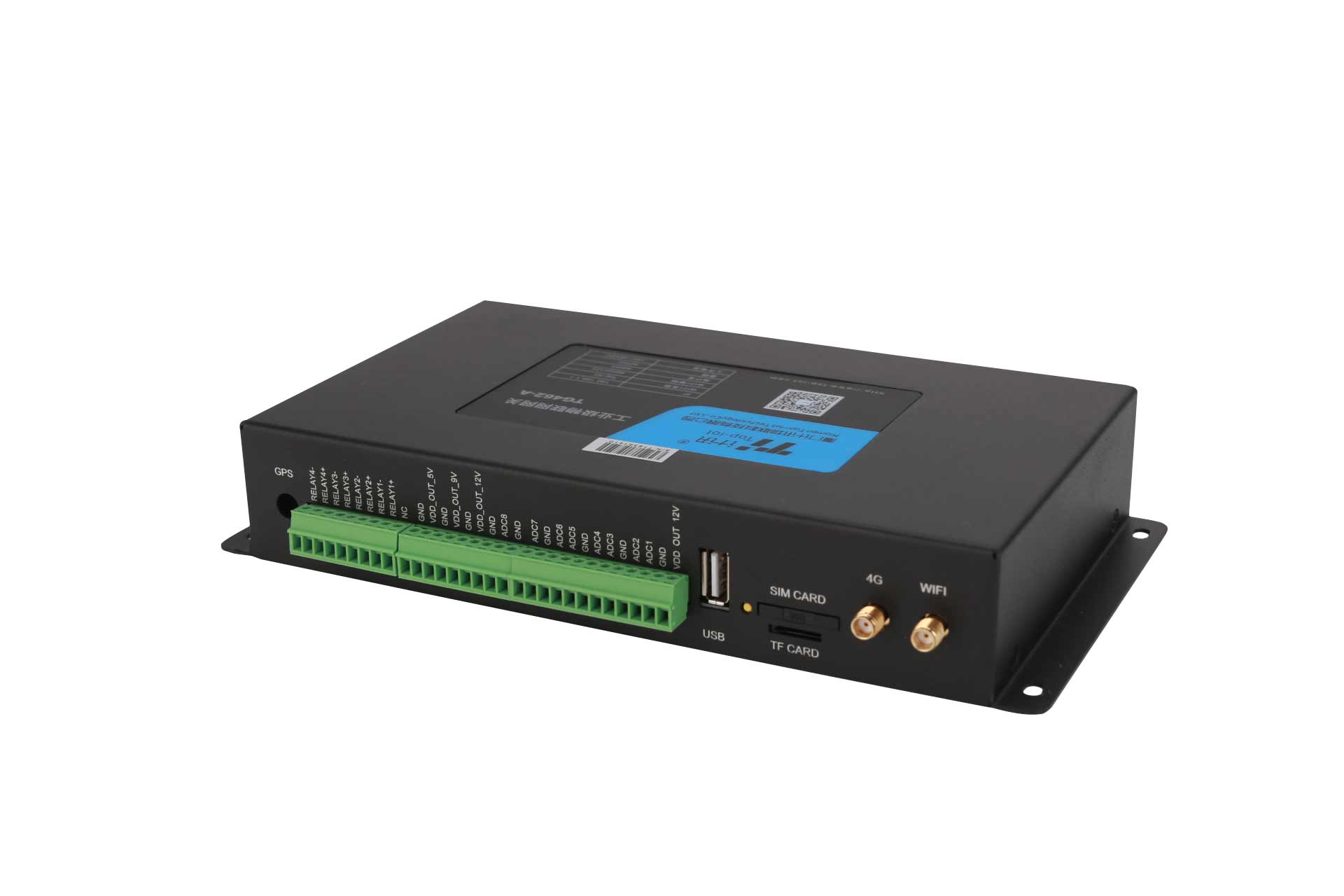

TG462/TG462S Touch Screen IoT Edge Gateway

ARM-based CPU, 7" touch screen, Customized UI
Rich I/O interfaces & customized communication protocols

TG462/TG462S: Touch Screen IoT Edge Gateway

7" touch screen ARM based IoT edge gateway, provides a better user experience for field data display and maintenance
● High-performance ARM-based CPU
● 2-RJ45, 4-RS232, 3-RS485, 4-DI, 8-ADC,   4-Relay, 5-Power Output, 1-I2C, 1-TTL, USB

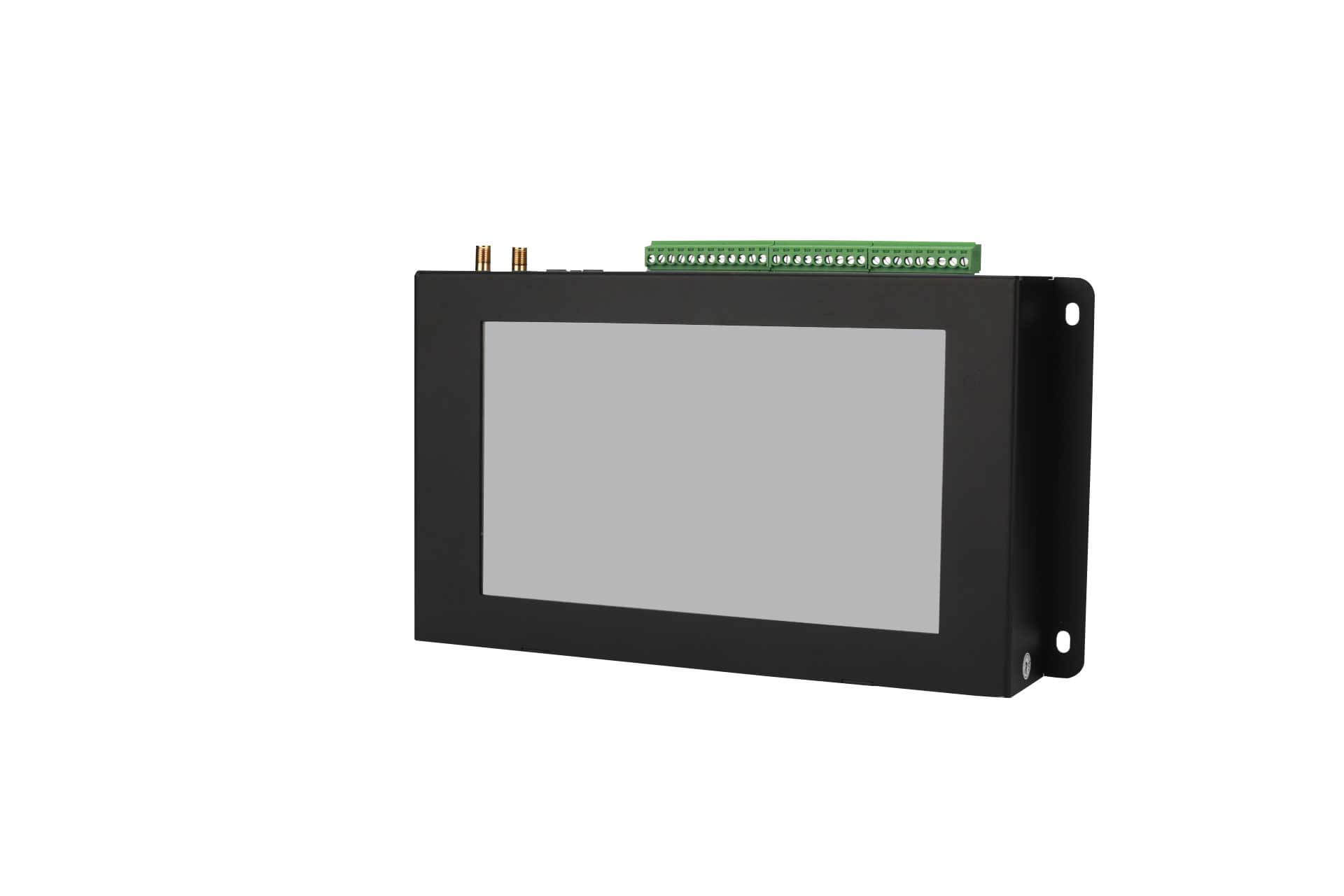

● 7'' HD Touch screen (Only for TG462S)
● Up to 1GB flash, 1-Micro SD card supports up to 32GB data and program storage
● LTE CAT 6/CAT4* provides ample bandwidth for high data demand
● GPS* and WIFI*
● Capacity of collecting, processing and storing data locally, and transferring the data over cellular network
● Easy to use and program the gateway, customizable for your applications
● Secondary Customization and OEM/ODM are available
*LTE CAT 6, GPS, WIFI are option features
  • Overview
  • Specifications
  • Case Study
  • Order Information
The TG462/TG462S Industrial cellular Edge Gateways are designed for connecting diverse types of field sensors and equipment to cloud via LTE/3G cellular network, which is suitable for IIoT and M2M applications that require secure and rugged LTE connectivity in harsh environment, such as water&waste water, gas&oil, industry 4.0, smart city, vending machines, etc.

With rich interfaces, includes Ethernet ports, RS232/RS485, digital inputs, analog inputs, relay outputs, I2C, power output, USB, GPS, WIFI, etc., The TG462/TG462S Edge Gateways allow users to integrate legacy systems with modern sensors. With high-performance 32-bit ARM-based CPU, Modbus RTU/TCP, MQTT, TCP/IP, and customized protocols, as well as up to 1G flash and 32G micro SD local data storage, enables users to collect, store and process data at IoT edge network.

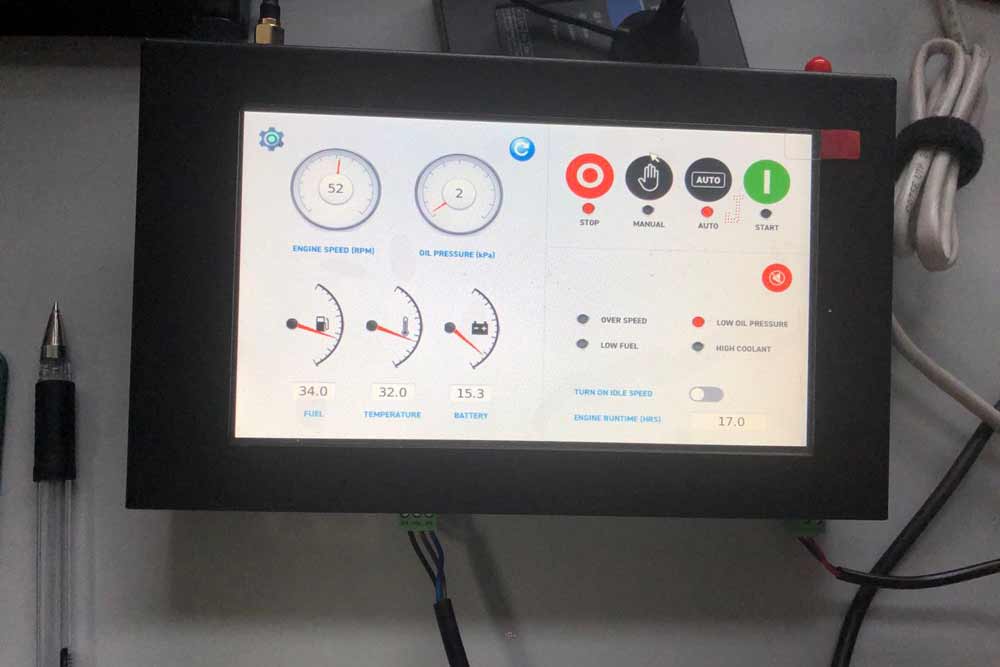

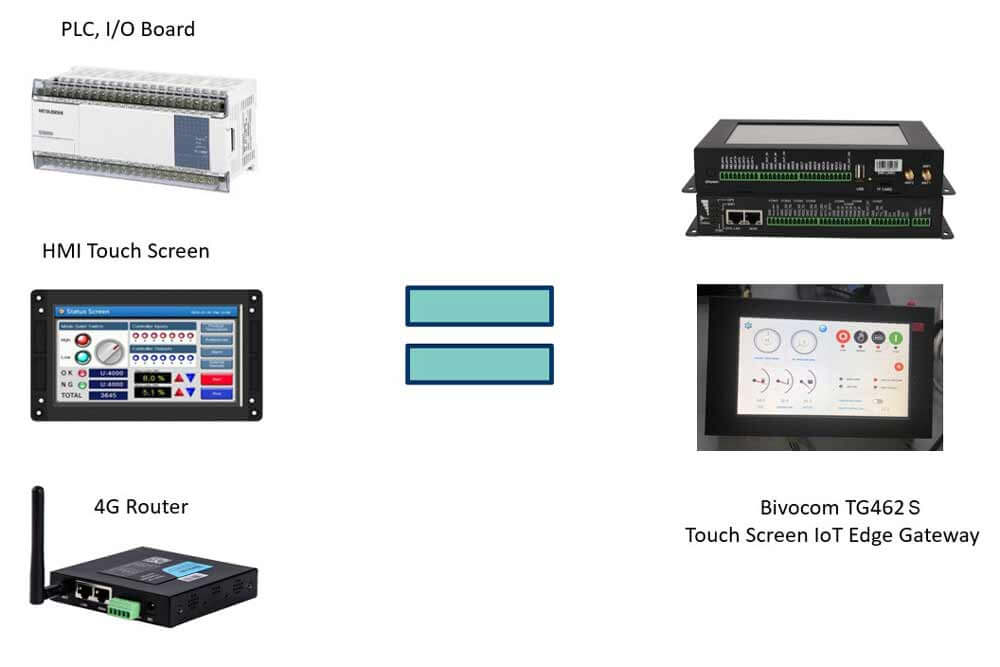

Besides, TG462S embedded with a 7inch HD TFT touch screen provides a better user experience for field data display and maintenance. The LTE CAT 6/CAT4 and VPN provide ample bandwidth and secure connectivity for transferring field data to remote server.
* option feature
System
  ● CPU: 32-bit ARM Cortex A7, 528MHz
  ● Flash: TG462: 256MB (Extendable to 1GB) *
                TG462S(Touch screen model): 1GB
  ● Memory: 256MB DDR3

Cellular Interface

  ● Antenna Connector: 2 × 50 Ω SMA Female
  ● SIM Slot: 1

LCD Screen
  ● TG462S: 800*480, TFT Touch Screen

Ethernet Interfaces
  ● Ports: 2-RJ45 (1-WAN, 1-LAN or 2-LAN, configured by software)
  ● Data Rate: 10/100 Mbps (Auto-Sensing), Auto MDI/MDIX, 1.5KV Magnet Isolation

Serial Interface

● Connector: Terminal block, 3.5 mm female socket with lock
  ● Ports: 4 x RS232(1 for debug), 3 x RS485
  ● Baud Rate: 100bps to 230400bps
  ● 15KV ESD Protection

Wi-Fi(Option)
  ● Antenna Connector: 1 × 50 Ω SMA Male (or 2, option)
  ● Standard: IEEE 802.11b/g/n, supporting AP and Client modes
  ● Transmission Rate: IEEE802.11b/g: Up to 54Mbps; IEEE802.11n: Up to 300Mbps
  ● Security: Open, WPA, WPA2, WPA/WPA2 Enterprise, Radius

GPS (Optional)
  ● Module: Built-in independent GPS module

  ● Antenna Connector: 1 × 50 Ω SMA Female

I/O
  ● Connector: Terminal block, 3.5 mm female socket with lock
  ● DI: 4-DI
     Logic 0: Wet contact 0-3VDC, or dry contact close
     Logic 1: Wet contact DC 5-30V, or dry contact open
  ● DO: 4-Relay(5A and 30VDC/250VAC output)
  ● ADC: 8 x 16-bit AD, supports 4-20mA current signal input, or 0-5V voltage signal input (Option)
  ● I2C: 1, For temperature, humidity sensors
  ● TTL: 1
  ● Power Output: 5-VDD
     3-channel 12V output;
     1-channel 9V output, rated current 1A;
     1-channel 5V output, rated current 1A;
     Built-in overcurrent protection, for external devices DC power input


External Storage
  ● USB Por: 1 x USB 2.0
  ● Micro SD Slot: 1 x TF card, Up to 32GB
  ● Usage: User Program, Data Storage and Firmware Upgrade

Power Requirements
  ● Connector: 4-pin with 3.5 mm terminal block Main and backup power input
  ● Standard Power: DC 12V/1.5A
  ● Input Voltage: 5-35 VDC
  ● Data acquisition mode: 251mA~357mA@12VDC
  ● Communication mode: 305mA~412mA@12VDC

Software
  ● Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, VLAN, SSH
  Serial Port: MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP)
  ● VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN
  ● Firewall: ACL/DMZ/Port Mapping/MAC Binding
  ● Management: Web, CLI, SMS, Cloud DMP (Device Management Platform) *
  ● Reliability: WAN Failover, Hardware & Software Watchdog
  ● Secondary Development: OpenWrt based, support Python, LUA and SDK

Physical

  ● Ingress Protection: IP30
  ● Housing & Weight: Metal
     TG462: 850g(1.87lbs)
     TG462S: 900g(1.98lbs), without accessories
  ● Dimensions: 228×122.5×38.2mm(8.97x4.82x1.50in)
  ● Mounting: Wall mount, Desktop

Environmental

  ● Operating Temperature: -35°C to +75°C (-31℉ to +167℉)
  ● Storage Temperature: -40°C to +80°C (-40℉ to +176℉)
  ● Humidity: 0% to 93% (non-condensing) at 25°C/77℉

Others
  ● LED Indicators: Signal strength, WIFI, System (SYS), Online, Power (PWR), GPS*
  ● Warranty Period: Standard: 12 Months, Extended: 2-5 Years*(Please refer to warranty policy)
  ● Approvals: CE*, RCM*, NBTC*, FCC*(*Under Progress)
Item TG462/TG462S
System
CPU
Flash

RAM
32-bit ARM Cortex A7, 528MHz
TG462: 256MB (Extendable to 1GB)
TG462S: 1GB
256MB DDR3
Cellular Interfaces
Antenna Connector
SIM Slot

2 × 50 Ω SMA Female
1
15KV ESD Protection
LCD Screen
TG462S 800*480, TFT Touch Screen
Ethernet Port
Ports

Data Rate

2 x RJ45 (1-WAN, 1-LAN or 2-LAN, configurable via Web UI)
10/100 Mbps (Auto-Sensing), Auto MDI/MDIX
1.5KV Magnet Isolation
Serial Port
Connector
Ports
Baud Rate

Terminal block, 3.5 mm female socket with lock
4 x RS232(1 for debug), 3 x RS485
100bps to 230400bps
15KV ESD Protection
I/O

Connector
I2C
TTL
ADC

DI


DO(Relay)

Power Output



Terminal block, 3.5 mm female socket with lock
1, For temperature, humidity sensors
1
8 x 16-bit AD, supports 4-20mA current signal input, or 0-5V voltage signal input (Option)
4 Logic 0: Wet contact 0-3VDC, or dry contact close Logic 1: Wet contact DC 5-30V, or dry contact open

4(5A and 30VDC/250VAC output)

5 (3-channel 12V output, 1-channel 9V output, rated current 1A, 1-channel 5V output, rated current 1A) Built-in overcurrent protection, for external devices DC power input.
WIFI(Option)
Antenna Connector

Transmission Rate


Security
1 × 50 Ω SMA Male (or 2, option) Standard IEEE 802.11b/g/n, supporting AP and Client modes
IEEE802.11b/g: Up to 54Mbps, IEEE802.11n: Up to 300Mbps
Open, WPA, WPA2, WPA/WPA2 Enterprise, Radius
GPS(Option)
Module
Antenna Connector
Built-in independent GPS Module
1 × 50 Ω SMA Female
External Storage Interface
Micro SD Card Slot
USB
Usage
1 x TF card, Up to 32GB
1 x USB2.0
User Program, Data Storage and Firmware Upgrade
Power Supply and Consumption
Connector

Standard Power
Input Voltage
Data acquisition mode
Communication mode
4-pin with 3.5 mm terminal block Main and backup power input
DC 12V/1.5A
5-35 VDC
251mA~357mA@12VDC
305mA~412mA@12VDC
Software
Network Protocols


Serial Port


VPN Tunnel
Firewall
Management

Reliability
Secondary Development
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH, etc.
MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP)
IPsec/PPTP/L2TP/GRE/OpenVPN
ACL/DMZ/Port Mapping/MAC Binding
Web, CLI, SMS, Cloud DMP (Device Management Platform)
WAN Failover, Hardware & Software Watchdog
OpenWrt based, support Python, LUA and SDK
Physical Characteristics
Ingress Protection
Housing & Weight


Dimensions
Mounting
IP30
Metal
TG462: 850g(1.87lbs)
TG462S: 900g(1.98lbs), without accessories
228×122.5×38.2mm(8.97x4.82x1.50in)
Wall mount, Desktop
Environmental
Operating Temperature
Storage Temperature
Relative Humidity
Ethernet Isolation
-35°C to +75°C (-31℉ to +167℉)
-40°C to +80°C (-40℉ to +176℉)
0% to 93% (non-condensing) at 25°C/77℉
1.5 kV RMS
Others
LED Indicators
Built-in

Certifications
Warranty Period
Signal strength, WIFI, System (SYS), Online, Power (PWR), GPS*
Watchdog, RTC, Timer
CE*, RCM*, FCC*
Standard: 12 Months Extended: 2-5 Years

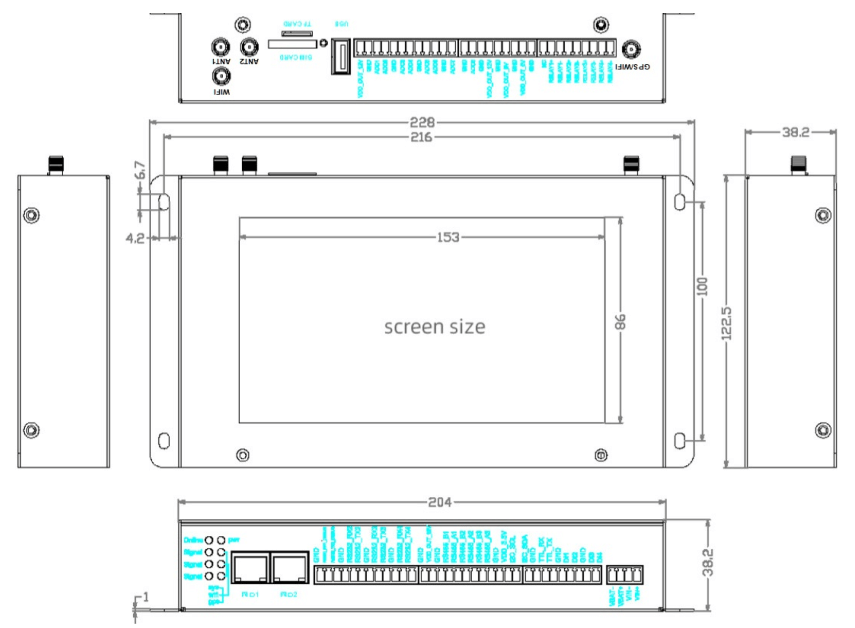

Dimension(mm)
TG462_Dimensions
Model:
   1. TG462
       IoT Edge Gateway

   2. TG462S
       Touch screen IoT Edge Gateway

Part Number:
   1. TG462-<1>-<2>
   2. TG462S-<1>-<2>

Decription:
   1. 4G/3G*,  256MB Flash(1GB*), 1-WAN, 1-LAN, USB, 4-RS232, 3-RS485, 1-I2C, 1-TTL, 8-ADC, 4-DI, 4-DO, 5-Power Output, 1-Micro SD slot, WIFI/GPS*

   2. 4G/3G*, 7" Touch Screen, 1GB Flash, 1-WAN, 1-LAN, USB, 4-RS232, 3-RS485, 1-I2C, 1-TTL, 8-ADC, 4-DI, 4-DO, 5-Power Output, 1-Micro SD slot, WIFI/GPS*
       ● <1>, means different network(4G, 3G) and module for different countries and regions
       ● <2>=W, WIFI
       ● <2>=G, GPS(standalone GPS)
       ● <2>=1, 1GB Flash(TG462 default flash is 256MB)

Frequency band:
   1. 4G LTE CAT 4
   ● EMEA:B1/B3/B5/B7/B8/B20/B38/B40/B41
   ● ANZ/LATAM:B1/B3/B5/B7/B8/B28
   ● NA:B2/B4/B5/B12/B13/B14

   2. 3G/HSPA/UMTS/WCDMA
   ● Region: 900/2100MHz, or 850/1900/2100MHz
   ● Global: 800/850/900/1900/2100
1. <1> in part number means different frequency band for different market, while <2> means with WIFI, GPS or other features, please ask Bivocom sales representatives or your local partner for more information.

2. Frequency band in the table are just part of our models, if you couldn't find the frequency band in your regions, please feel free to contact us.
