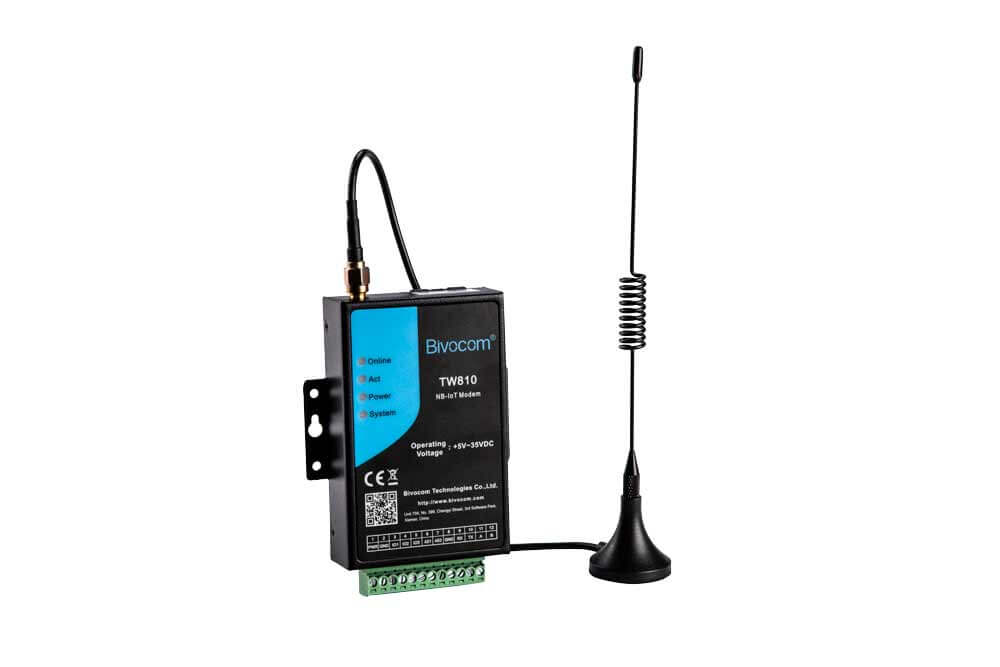

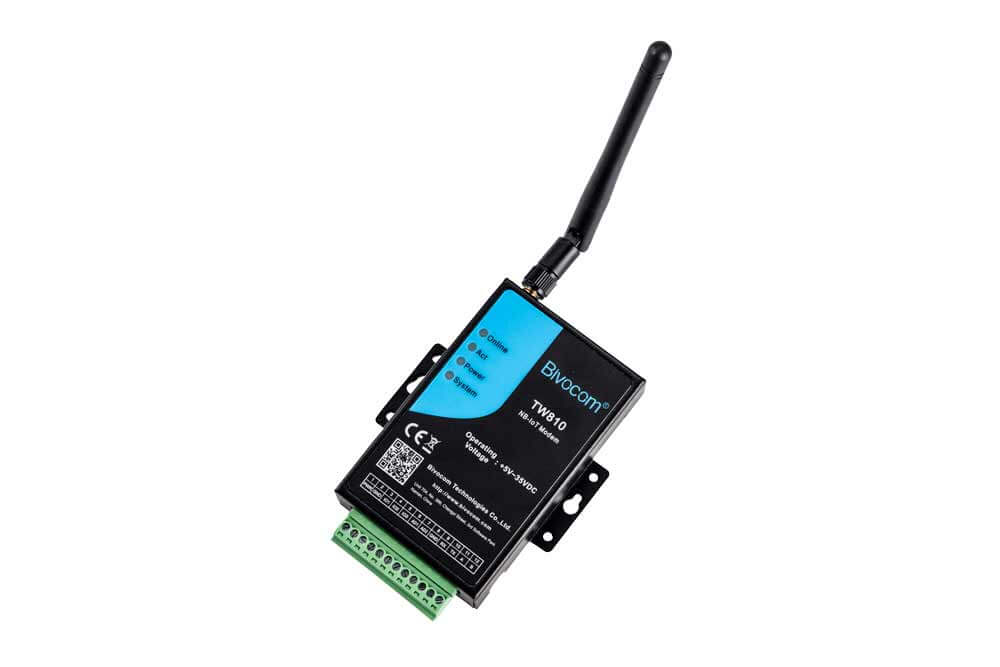

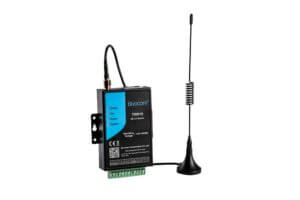

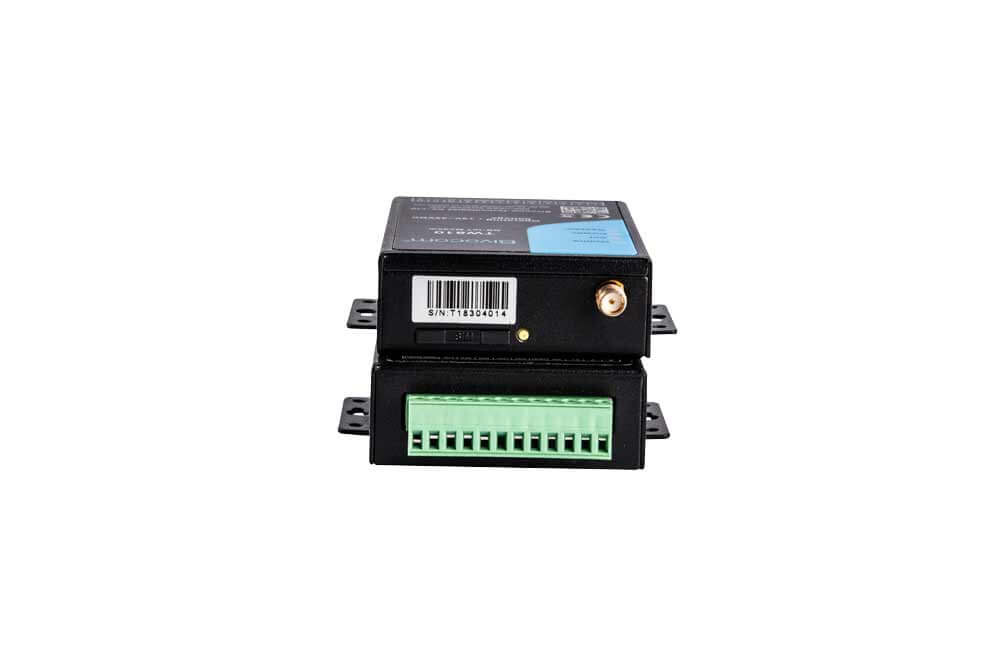

TW810 LTE-M/NB-IoT Modem

Better coverage, lower power consumption

TW810: LTE-M/NB-IoT Modem

Seamlessly migration from your legacy GPRS/GSM modems to LTE CAT M1/NB1 Network

Industrial MCU built in, rugged and reliable
LTE Cat M1, NB-IoT and EDGE/GPRS compatible
1-RS232, 1-RS485
Modbus RTU, TCP/UDP, AT Command
Up to 5 sync data center
Wide operation voltage: 5-35VDC
Working temperature: -35C~+75C
  • Overview
  • Specifications
  • Case Study
  • Order Information
Bivocom TW810 series LTE-M/NB-IoT modems are designed for applications require better signal and coverage, lower consumption serial modem for sending their field serial data to remote server via LTE CAT M1 and NB-IoT network, applications like smart building, HVAC, underground pipeline monitor, or moving assets management.

Besides, it’s also a low cost and bandwidth solution to replace legacy GPRS/GSM serial modem, as we all know, GPRS/GSM network has been shut down in some regions by carriers, and more and more carriers have scheduled to shut down their GPRS/GSM network in the coming years, so Bivocom TW810 is a great fit and solution for those applications mentioned above.

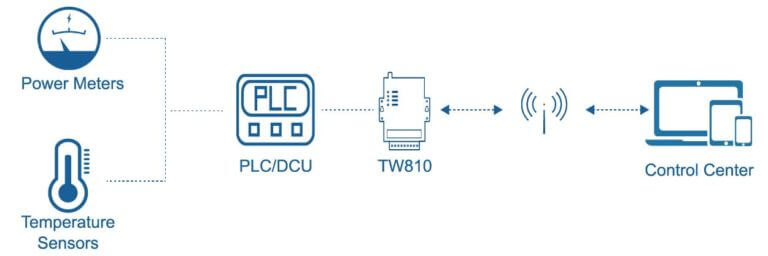

TW810 has built in independent MCU chipset, and multi-layer software detection and hardware protection mechanism to ensure reliability and stability, and RS232, RS485 easy to connect to serial port sensors, PLC, IPC and controller.

It supports transparent data transmission, helping you seamlessly transfer the data under MQTT*, Modbus RTU, TCP/UDP protocol to your remote server.

It supports up to 5 sync data center, which enables you to receive the same data in different location and backup your data.

A powerful and ease to use config tool, allows you to choose different type of cellular network and protocols for your specific needs.
Cellular Interface
  ● Antenna Connector: 1 × 50 Ω SMA Female
  ● SIM Slot: 1

Serial Interface

● Ports: 1-RS232, 1-RS485

Power Requirements
  ● Standard Power: DC 12V/0.5A
  ● Input Voltage: 5-35 VDC

Software
  ● Management: Config Tool, SMS, Cloud DMP (Device Management Platform, license fee required)*

Physical

  ● Ingress Protection: IP30
  ● Housing & Weight: Metal, 208 g (0.46 lbs)
  ● Dimensions: 91 x 58 x 22 mm (3.58 x 2.28 x 0.87 in)

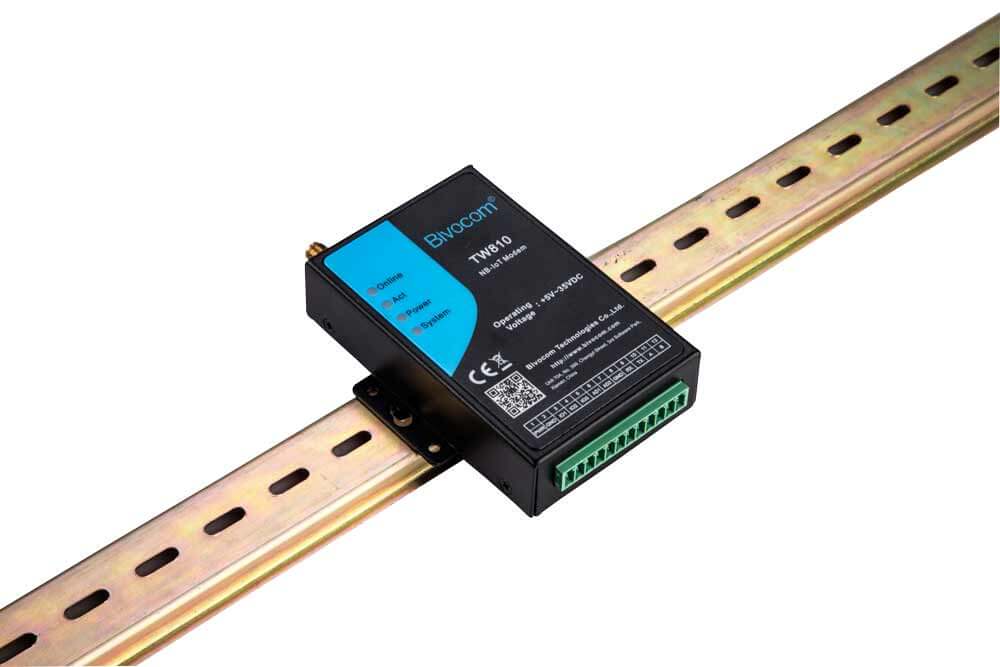

  ● Mounting: wall mount

Environmental

  ● Operating Temperature: -35°C to +75°C (-31℉ to +167℉)

Others
  ● LED Indicators: Online, Act, Power, System
  ● Warranty Period: Standard: 12 Months, Extended: 2-5 Years*(Please refer to warranty policy)
  ● Approvals: CE, RCM*, FCC*, NBTC(* Under progress)
Item TW810
Cellular Interfaces

Antenna Connector
SIM Slot
1 × 50 Ω SMA Female
1
Serial Interface
Ports
1-RS232, 1-RS485
Power Requirements

Standard Power
Input Voltage
DC 12V/0.5A
5-35 VDC
Software

Network Protocols



Management
MQTT*, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP), COAP, DNS
(* Pending)

Config Tool, Cloud DMP* (Device Management Platform)
(* May require additional cost)
Physical
Ingress Protection
Housing & Weight
Dimensions
Mounting
IP30
Metal, 208 g (0.46 lbs)
91 x 58 x 22 mm (3.58 x 2.28 x 0.87 in)
Desktop, Wall mounting
Environmental
Operating Temperature -35°C to +75°C (-31℉ to +167℉)
Others
LED Indicators
Warranty Period

Approvals
Online, Act, Power, System
Standard: 12 Months
Extended: 2-5 Years*(Please refer to warranty policy)
CE, RCM*, FCC*, NBTC(* Under progress)

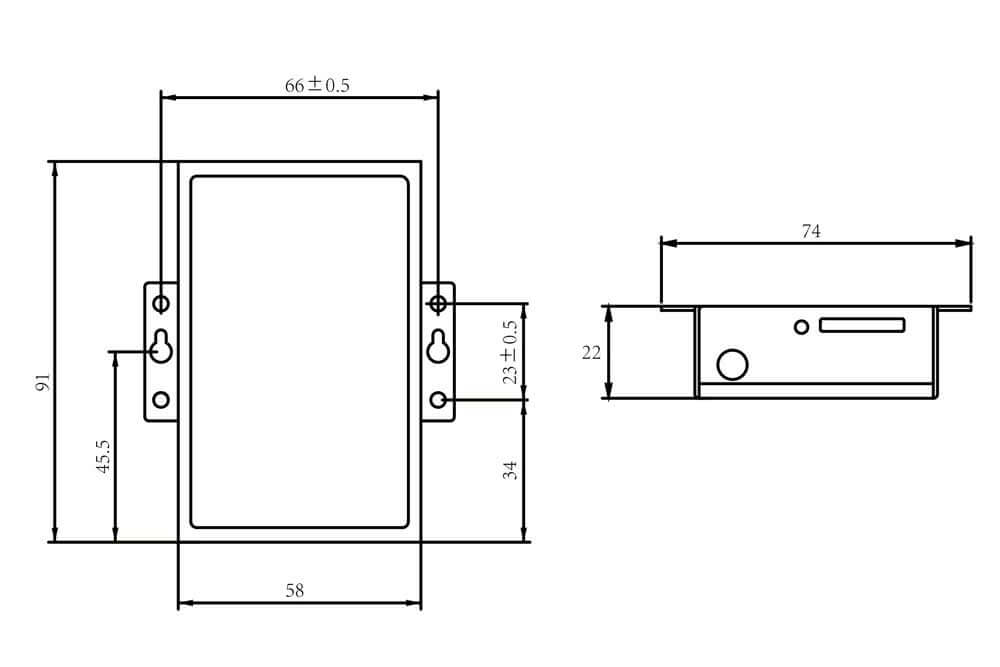

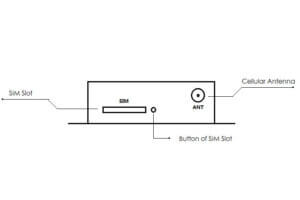

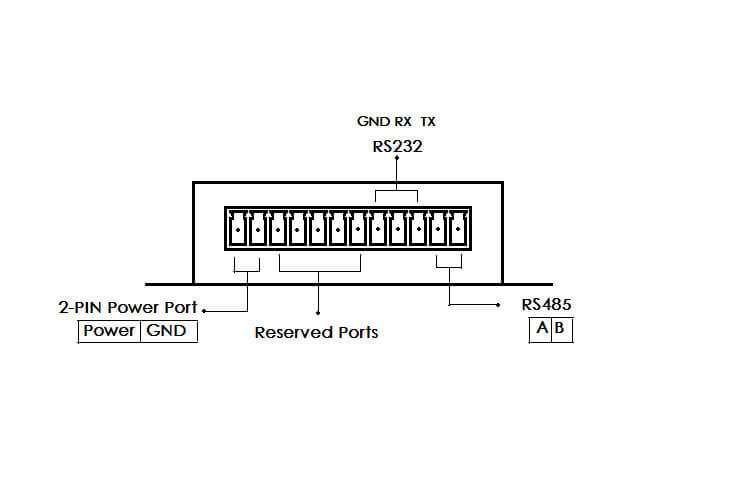

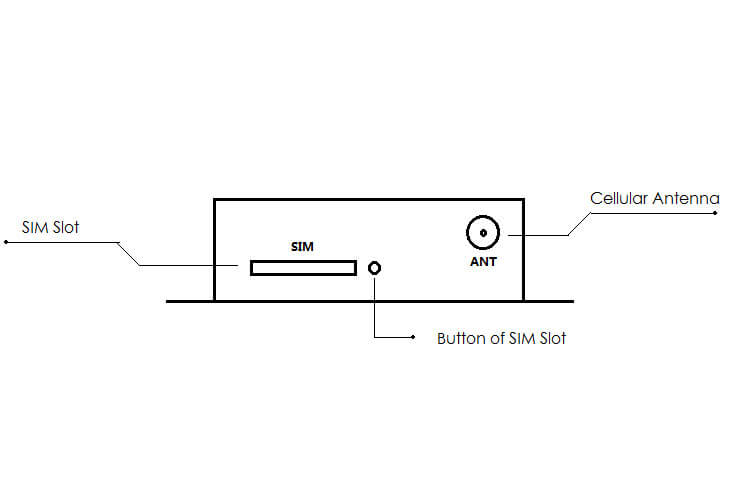

Dimension(mm) and Ports
Model:
   1. TW810-M
   2. TW810-N


Part Number:
   1. TW810-M<...>
   2. TW810-N<...>


Decription:
   1. LTE-M/NB-IoT/EDGE/GPRS Modem, 1-RS232, 1-RS485
   2. NB-IoT Modem, 1-RS232, 1-RS485

Frequency band:
   1. LTE CAT M1/NB-IoT/EDGE/GPRS
   ● APAC: FDD-LTE B1/B3/B5/B8; GPRS/EDGE 900/1800 MHz
   ● NA: FDD-LTE B2/B4/B12/B13
   ● EMEA/ANZ: FDD-LTE B3/B8/B20/B28; GPRS/EDGE 900/1800Mhz
   ● Global: FDD-LTE B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/(B39 CAT-M1 only); GPRS/EDGE 850/900/1800/1900Mhz

   2. LTE NB1(NB-IoT)
   ● Global: B1/B3/B5/B8/B20/B28
Model
Part Number*
Description
Frequency Band*
TW810-M
TW810-M<...>
LTE-M/NB-IoT Modem
1-RS232, 1-RS485
LTE CAT M1/NB-IoT/EDGE/GPRS
APAC: FDD-LTE B1/B3/B5/B8 GPRS/EDGE 900/1800 MHz

NA: FDD-LTE B2/B4/B12/B13

EMEA/ANZ: FDD-LTE B3/B8/B20/B28 GPRS/EDGE 900/1800Mhz

Global: FDD-LTE B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/(B39 CAT-M1 only); GPRS/EDGE 850/900/1800/1900Mhz

TW810-N
TW810-N<...>
NB-IoT Modem
1-RS232, 1-RS485
Global: B1/B3/B5/B8/B20/B28
1. <...> in part number means different frequency band for different market, please ask Bivocom sales representatives or your local partner for more information.
2. Frequency band in the table are just part of our models, if you couldn't find the frequency band in your regions, please feel free to contact us.
