Connect, Control & Optimize Kitchen HVAC Efficiently

Commercial kitchens are among the most energy-intensive spaces in any building. Most kitchen ventilation systems run at full speed regardless of actual cooking activity—a massive waste that facility managers have learned to accept. Achieving true efficiency requires intelligent connectivity between temperature sensors, smoke detectors, HVAC controllers, and cloud analytics. Bivocom‘s TG453  is engineered specifically as a BACnet IoT Gateway for Smart Kitchen HVAC, supporting native BACnet MS/TP and BACnet/IP connectivity, Python-based edge control, secure MQTT TLS transmission to Azure IoT Hub, and industrial-grade performance built for harsh kitchen conditions—turning your kitchen from an energy liability into a smart, efficient asset.

What is BACNET?

BACnet (Building Automation and Control Networks) is the open communication protocol that makes intelligent building automation possible. It‘s core innovation was simple but powerful: it defines a common object model that describes sensors, actuators, schedules, and alarms in a way any BACnet-compliant device can understand. The common protocol that allows HVAC, lighting, fire safety, security, and other systems from different manufacturers to communicate seamlessly. Two Main Variants You‘ll Encounter:

1. BACnet/IP: Runs over standard Ethernet/IP networks. It‘s the go-to choice for connecting building-level controllers and BMS (Building Management System) servers. BACnet/IP has been the dominant method for IP networks for over two decades because it‘s straightforward to implement and relatively simple to configure.
2. BACnet MS/TP: Master-Slave/Token Passing runs over RS-485 serial buses. It‘s less expensive, highly resistant to electrical noise, and perfect for connecting sensors, actuators, and field controllers. MS/TP is what you‘ll typically find in kitchens for temperature sensors, smoke detectors, and VAV (Variable Air Volume) controllers.

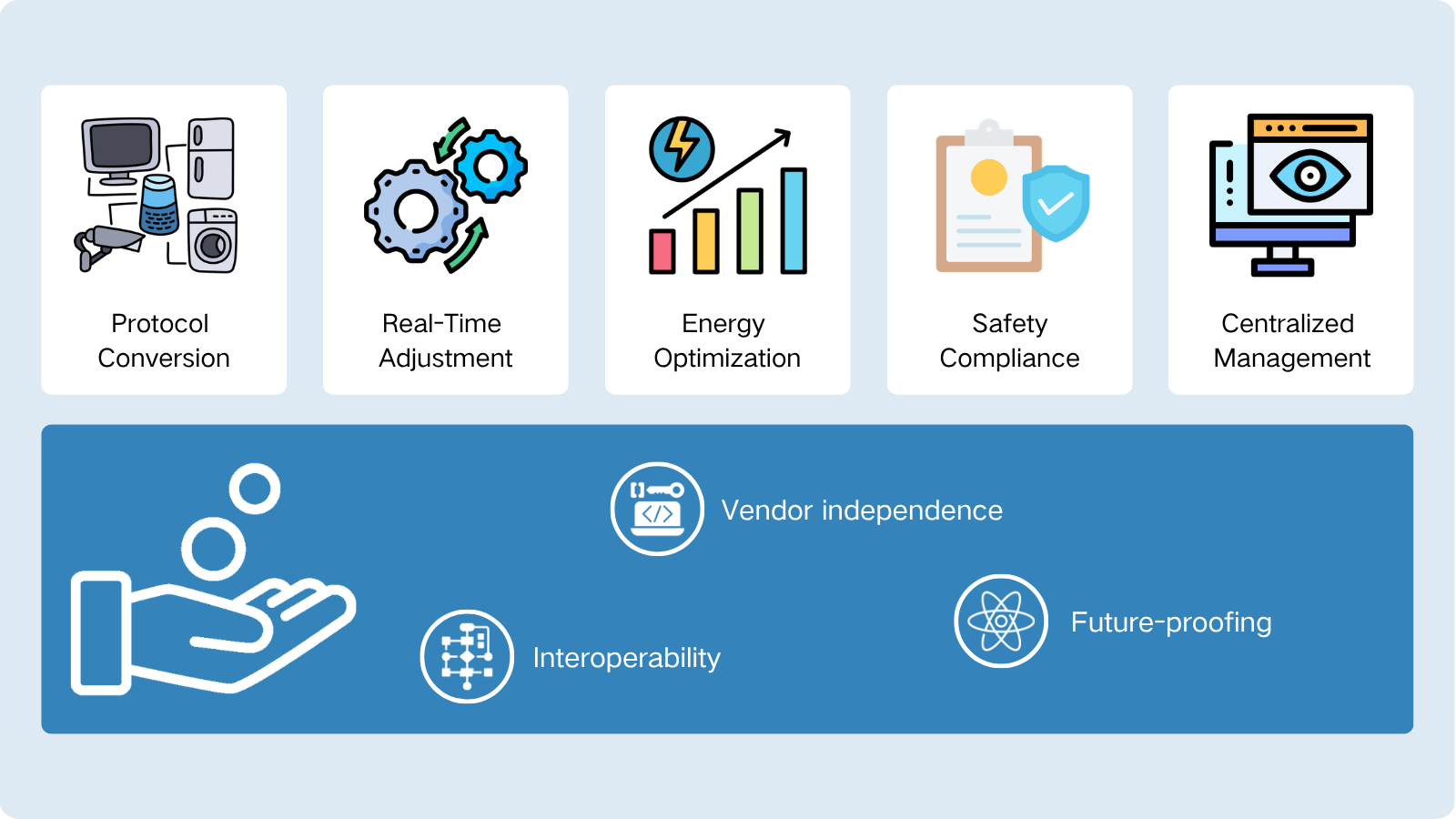

Why BACnet Matters for Your Kitchen

Commercial kitchens face five critical challenges that a BACnet-based IoT gateway uniquely solves:

• Protocol silos: Most kitchens mix older devices with newer equipment, with no native way to share data or coordinate actions. These systems run independently and waste energy.

• Dynamic cooking loads: Cooking activity changes constantly. Ventilation and cooling must adjust in real time to maintain air quality, temperature balance, and safe negative pressure

• Excessive energy waste: Fixed-speed fans and 24/7 operation often use more power than necessary. Energy remains a major cost driver

• Safety and compliance risks: Gas leaks, high CO levels, and equipment failures require instant automated responses to protect staff and avoid regulatory fines.

• Lack of centralized visibility: Multi-location restaurant groups need remote monitoring and control.


In short, an HVAC BACnet Kitchen Gateway removes protocol silos, automates real-time adjustments, cuts energy use, strengthens safety, and supports centralized management at scale. And when you build your kitchen control system around BACnet, you get:

1. Vendor independence: Mix and match best-in-class components from any BACnet-certified manufacturer

2. Future-proofing: BACnet has evolved continuously for 30 years, with new features like BACnet/SC (Secure Connect) now emerging

3. Interoperability: Your HVAC system can talk to your lighting, security, and energy metering without custom integration


TG453: Built for Kitchen HVAC Deployments

The Bivocom TG453 is an industrial 5G Gigabit IoT gateway built from the ground up for demanding applications. It‘s not a consumer router repurposed for industrial use—it‘s purpose-designed for IoT, M2M, and eMBB applications requiring high speed, low latency, and edge computing capability.

• Connectivity: Global 5G NR Sub‑6 bands (with optional mmWave), SA/NSA dual modes, with 4G fallback and optional dual SIM for failover.

• Wired Interfaces: 2x RS485 for MS/TP sensor networks, 5x RJ45(GbE) for BACnet/IP controllers and BMS servers, plus 1x RS232 debug port.

• Computing & Programmability: OpenWrt‑based Linux OS, runs Python or C/C++ apps directly on the gateway, with up to 32GB Micro SD storage for data buffering.

• Harsh Environment Ready: -35°C to +75°C operating range, IP30 metal housing, hardware/software watchdog, and 1.5kV Ethernet surge isolation.

• Security & Remote Access – Supports IPsec, OpenVPN, and other VPN protocols; SPI firewall; secure SSH/HTTPS/CLI management.

• Power: Wide input 5–35 VDC, plus a 12V/1A output to directly power field sensors.

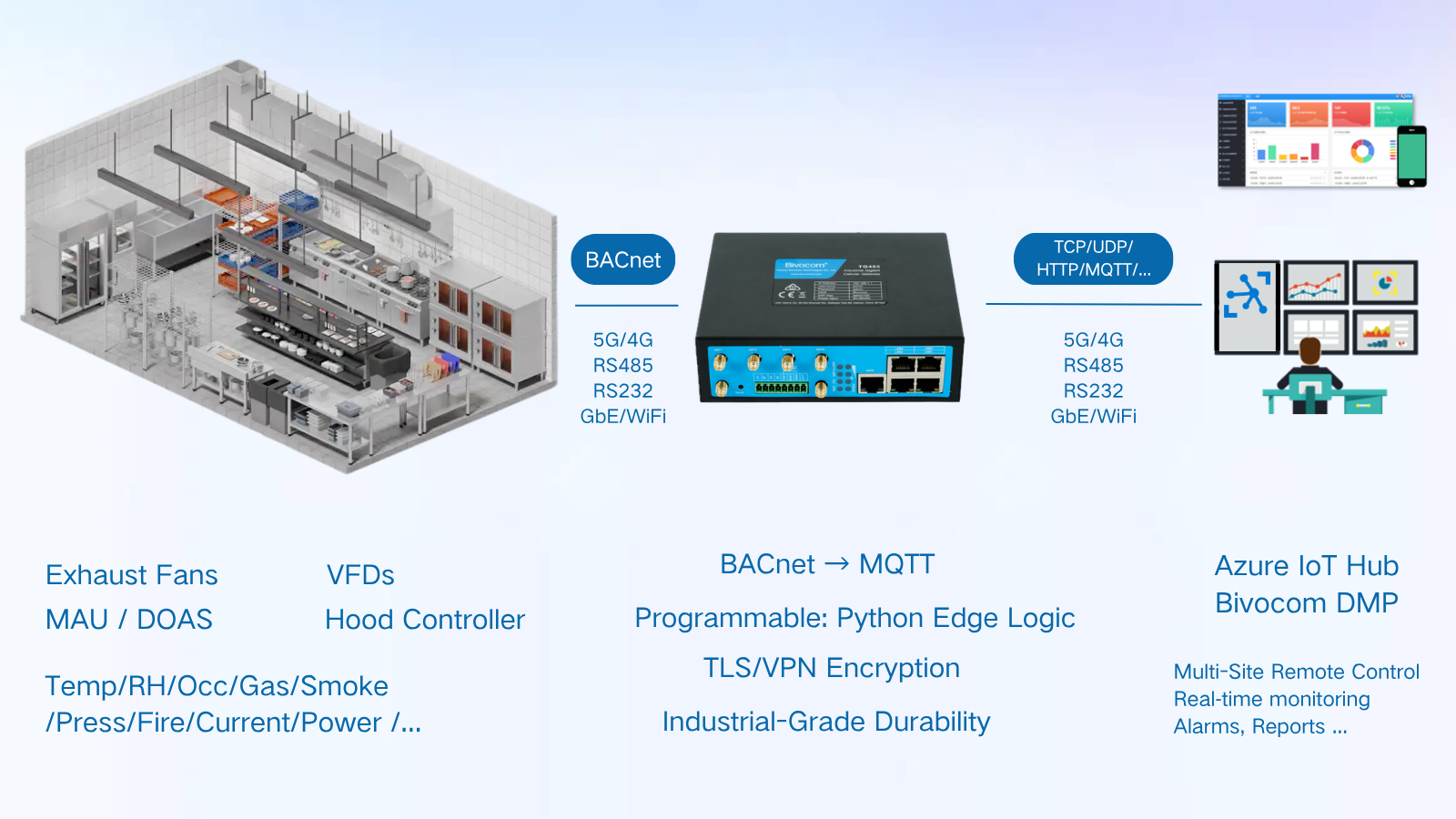

How the TG453 Gateway Operates

TG453 establishes a secure, end-to-end intelligent link between commercial kitchen field devices and the IoT cloud platform, while running local intelligence to maintain performance even without internet access.

Connect Devices: Two RS485 ports to communicate with BACnet MS/TP equipment: exhaust fans, VFDs, temperature, humidity, and gas sensors. Five Gigabit Ethernet ports connect to BACnet/IP HVAC units and building BMS systems. TG453 reads analog and binary values, and writes control commands to adjust fan speed, temperature setpoints, and air pressure.

Run Local Edge Logic: With Python directly on the TG453, you deploy custom automation rules at the edge. This local control ensures millisecond response and stable operation, even when the cloud connection is temporarily lost. Common kitchen workflows include:

• • Increasing fan speed when cooking heat or temperature rises
  • Maintaining stable negative pressure to contain smoke and odors

  • Reducing fan speed during off-peak hours to save energy

  • Triggering full ventilation and safety locks if gas or CO is detected

  • Syncing HVAC behavior with scheduled operating hours


Cloud Integration: Converts BACnet data structures into lightweight MQTT messages. All transmissions use TLS encryption to protect operational and safety data. The gateway sends telemetry to cloud platform (Azure IoT Hub/Bivocom DMP/…), where teams view dashboards, generate energy reports, set alerts, and issue remote commands back to the gateway.

Secure Remote Management: Built‑in VPN (OpenVPN, IPsec, etc.) provides encrypted, safe access to the on‑site BACnet network. IT and maintenance teams can diagnose issues, adjust settings, and update configurations without visiting each location – lowering operational costs and improving uptime.

Learn how to collect data via BACnet on IoT gateways with our detailed technical blog and step-by-step YouTube tutorial: How to Collect Data via BACnet on IoT Gateway & How to Use Bivocom Industrial Gateway for BACnet Data Collection.

Ideal Use Cases & Adaptability

The TG453 is engineered to address the unique challenges of commercial kitchen HVAC systems, with built-in features that align seamlessly with the most common kitchen operations and requirements. Its versatility makes it well-suited for a range of foodservice and hospitality environments, where reliable BACnet connectivity, edge automation, and secure cloud integration are critical. Bivocom HVAC & BACnet case.

Ghost Kitchens & Multi-Tenant Cloud Kitchens
Shared cloud kitchens require zone-specific ventilation control, independent energy monitoring, and unified safety protocols. TG453’s dual RS485 ports support separate BACnet MS/TP zones. Python edge logic enables cooking-triggered ventilation. It activates fans only when needed, cutting energy use. The gateway’s 5G/4G and MQTT TLS encryption allow tenant-specific data reporting to the cloud. This simplifies billing and compliance tracking across multiple operators.

Hotel & Restaurant Kitchens
Fine-dining and hotel kitchens demand precise environmental control. This includes stable negative pressure to prevent odor transfer, consistent temperature regulation, and seamless BMS integration. TG453 excels here with native BACnet/IP for central HVAC syncing, Python-driven pressure balancing, and industrial ruggedness. It withstands high heat and humidity. Local data buffering ensures no critical data is lost, supporting health and safety compliance.

Regional & National Chain Restaurants
For multi-site restaurant groups, standardization, centralized visibility, and remote maintenance are non-negotiable. TG453 works with Bivocom’s DMP for unified monitoring and configuration across all locations. Built-in VPN allows remote BACnet troubleshooting, reducing on-site service costs. 5G/4G dual-SIM redundancy ensures uninterrupted connectivity, even where wired networks are unreliable.

About Bivocom

Commercial kitchens no longer have to accept energy waste, siloed operations, or safety risks. Bivocom’s TG453 BACnet IoT Gateway delivers intelligent connectivity for modern Smart Kitchen HVAC—unifying BACnet devices, running local edge logic, and ensuring secure cloud integration. From ghost kitchens to national chains, TG453 turns high‑consumption kitchens into efficient, future‑ready assets. Bivocom gives you the tools to make smart kitchen HVAC a reality.

• Customized Consulting: Tailored technical guidance to match your kitchen’s unique operational and integration needs
• Simplified Deployment Support: Streamlined assistance for smooth, low-disruption setup of connected kitchen systems.

• Long-Term Operational Support: Reliable ongoing maintenance to keep your kitchen systems efficient and secure.


Ready to Transform Your Commercial Kitchen?
Take the first step toward a more efficient, secure, and intelligent kitchen. Reach out to Bivocom today at [email protected] —we’re here to help you unlock the full potential of your HVAC system.
