Unlocking the Future of Energy



The global energy landscape is changing fast, driven by decarbonization and digital progress. As we detailed in our earlier blog Battery Energy Storage System (BESS) IoT Connectivity, smart energy storage has become a dynamic grid asset—now accounting for over 70% of new global installations and key to a low-carbon future. This shift has sparked a clear market trend: integrated, all-in-one ESS. A great example is the Commercial and Industrial (C&I) Energy Storage Cabinet—it solves commercial and industrial energy challenges, cuts operational costs, and boosts reliability. In this article, Bivocom will explore why this integrated technology matters and how IoT elevates its potential.

---

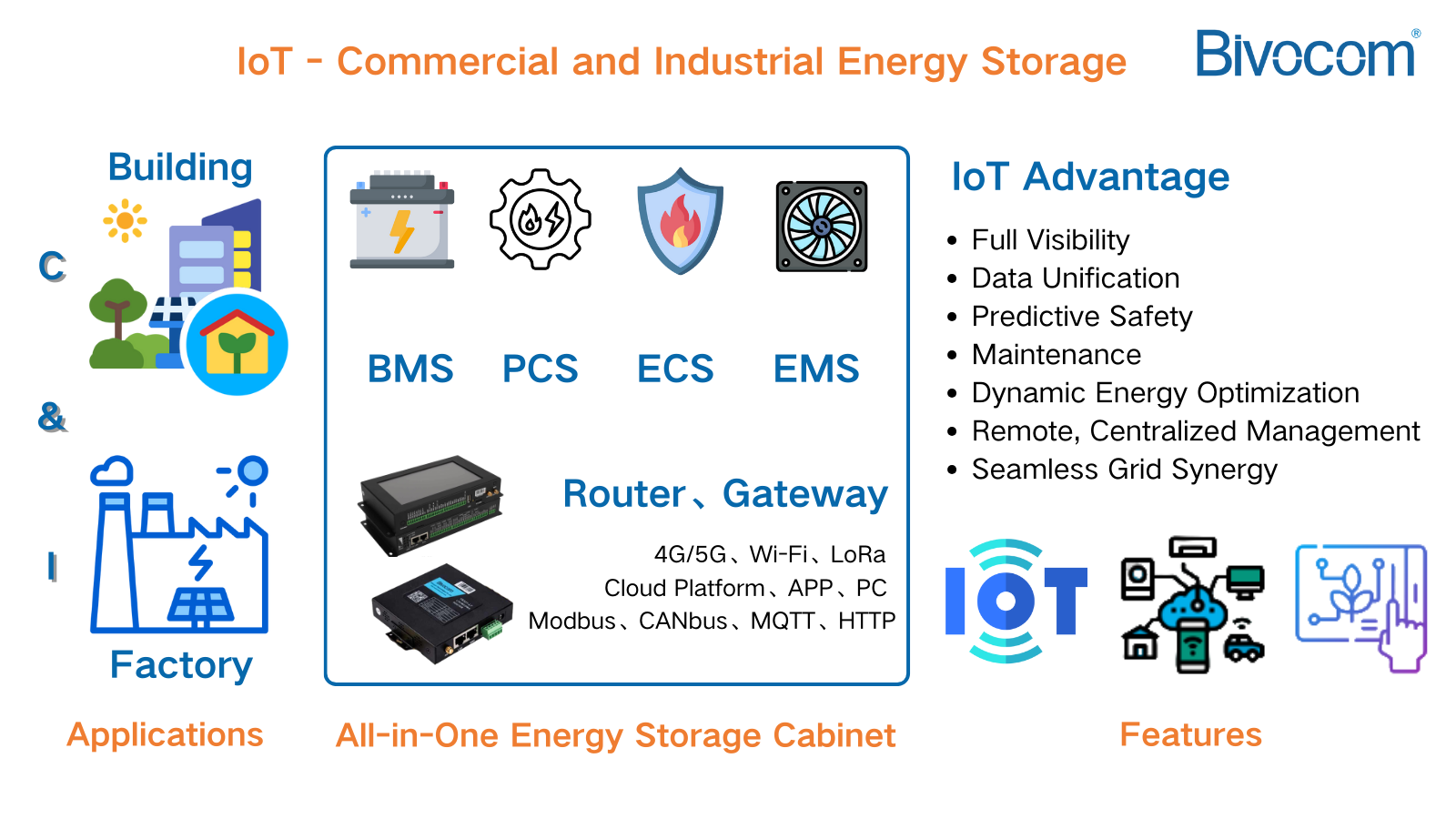

IoT Advantage

1. Full Visibility & Data Unification: IoT unifies real-time data from all critical components—BMS, PCS, and sensors—into a single dashboard, delivering real-time insights into battery health, power flow, and overall operational status—eliminating blind spots.

2. Predictive Safety & Maintenance: AI-driven analytics process continuous sensor data (voltage, temperature, resistance) to forecast cell degradation, component failures, or thermal risks weeks in advance, shifting from reactive fixes to proactive prevention.

3. Dynamic Energy Optimization: Connected to EMS and the cloud, IoT enables real-time adaptation to electricity prices, renewable output, and facility load—maximizing financial returns and operational efficiency.

4. Remote, Centralized Management: Cloud-based platforms enable seamless monitoring, troubleshooting, firmware updates, and fleet oversight of distributed assets—slashing on-site maintenance needs and operational costs.

5. Seamless Grid Synergy: Standardized protocols (Modbus, MQTT, IEC101/104) facilitate integration with smart grids, microgrids, VPPs, turning storage assets into grid-interactive resources for demand response and frequency regulation.

---

Bivocom Tailored IoT Products & Solutions

In the competitive C&I energy storage sector, reliable connectivity and edge intelligence are essential. Through in-depth industry needs analysis, Bivocom has developed and validated robust, industrial-grade IoT solutions. These solutions span diverse countries, sectors, and equipment types. Their core mission? To solve key challenges in deployment, security, and control. Take two of our flagship products as examples. The TG462S serves as the “smart brain”—powering edge processing and local control. The TR321 acts as the “stable backbone”—delivering secure, cost-effective connectivity. Below is a detailed breakdown of each product’s unique value, technical capabilities, and tailored solutions for C&I energy storage cabinets.

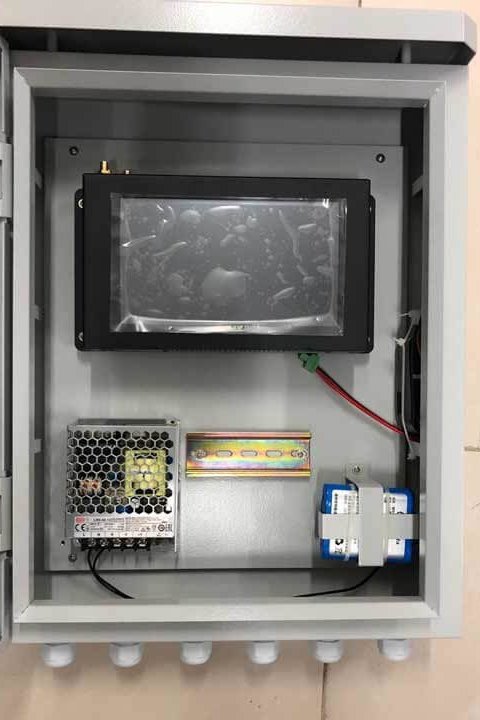

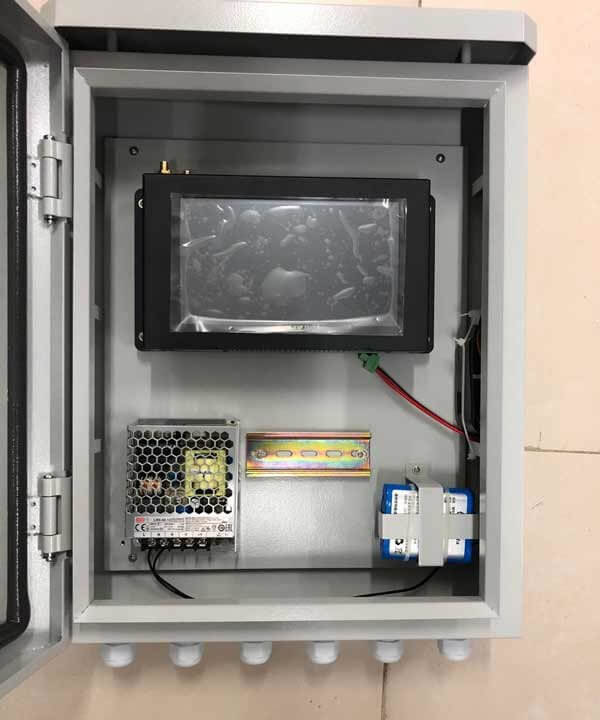

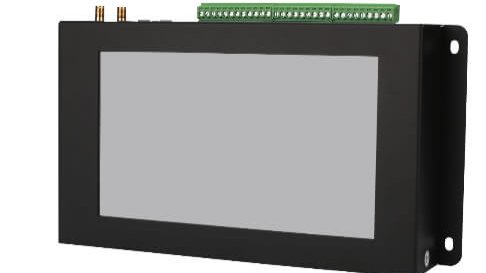

TG462S Touch Screen IoT Edge Gateway

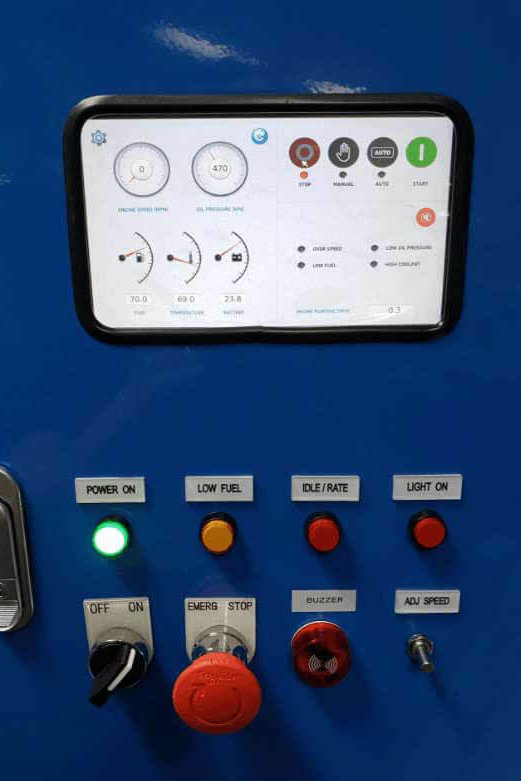

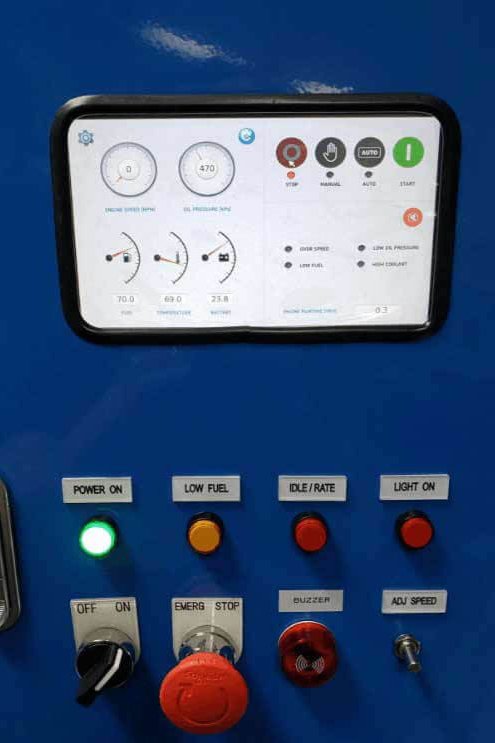

The TG462S integrates powerful local computing and extensive connectivity. It functions as both a data aggregator and an on-site controller, processing critical information locally to execute safety and grid responses in under 50ms. With its optional 7‑inch touch screen (800×480 HD, customizable UI), operators can monitor and control the system directly at the cabinet, enabling intuitive interaction and immediate troubleshooting.

• Processing & Storage: 32-bit ARM Cortex A7 (528MHz); 256MB DDR3; 256MB–1GB Flash (1GB standard for TG462S); Micro SD support (up to 32GB)
• Interfaces: 4xRS232, 3xRS485, 8×12-bit ADC (4-20mA/0-5V), 4xDI, 4xRelay (5A/30VDC); 2xRJ45 (10/100Mbps)
• Networking: Optional LTE CAT4/CAT6; Wi-Fi (802.11b/g/n); VPN (IPsec/OpenVPN/PPTP)
• Software & Programmability: OpenWrt-based; supports Python/Node-RED/LUA for edge logic; Modbus RTU/TCP, MQTT, custom protocols
• Reliability: -35°C to +75°C operating temperature; IP30 protection; hardware/software watchdog

Integration & Outcomes

• Real-time safety response: Local data processing enables immediate reaction to risks, significantly reducing thermal runaway hazards.

• O&M efficiency boost: On-site troubleshooting is streamlined via intuitive touch screen interaction, with most minor faults resolvable without remote support.

• Revenue optimization: Edge AI-driven charging/discharging scheduling enhances peak-valley arbitrage benefits.

• Data integrity: Comprehensive coverage of critical subsystem data, eliminating monitoring blind spots for compliance and audit needs.

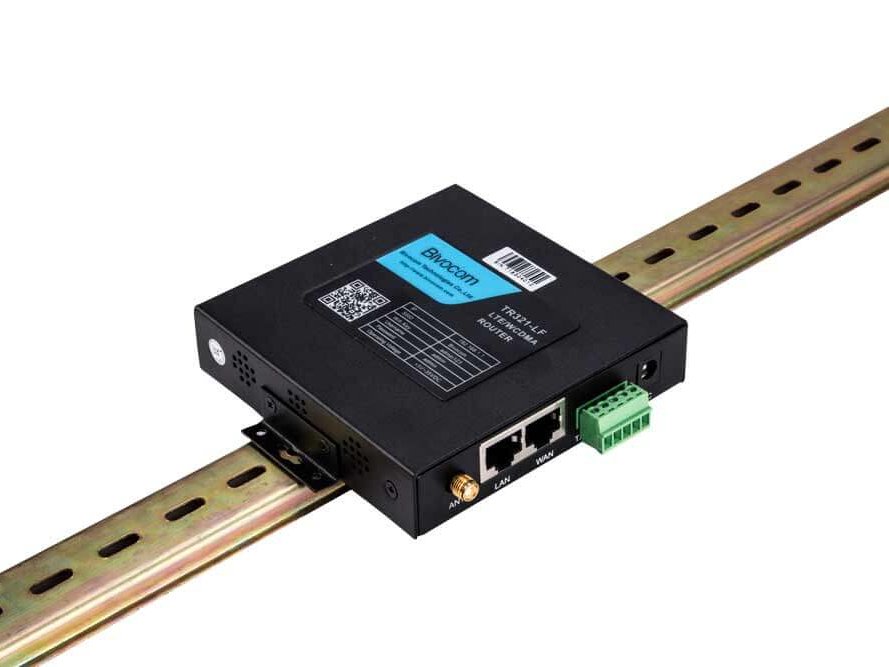

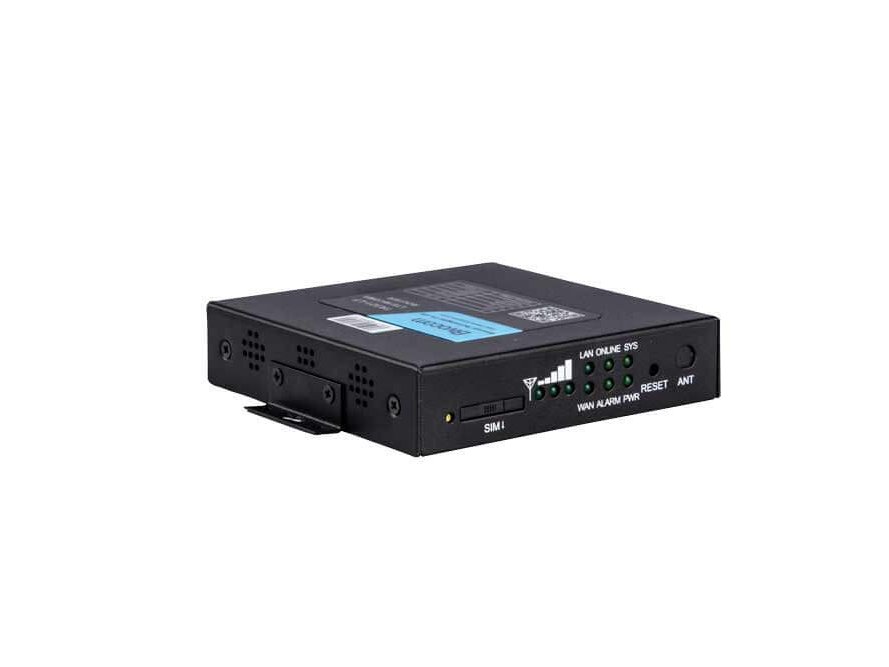

TR321 Industrial Router

While the TG462S delivers advanced intelligence, the TR321 Industrial Router focuses on providing secure, cost-effective connectivity. Compact and rugged, its core advantage lies in an optimal balance of reliability, simplicity, and affordability. It strips away unnecessary complexity while retaining all critical features for energy storage: stable cellular connectivity, protocol compatibility, and industrial-grade durability.

• Interfaces: 1xRS232, 1xRS485, 2xRJ45
• Networking: 4G LTE/CAT M1/NB-IoT options; optional Wi-Fi—adapts to weak or remote network conditions
• Physical Design: 100×100×23mm compact design; DIN rail/wall mount
• Reliability: 35°C to +75°C operating temperature; metal housing; 5-35VDC wide voltage input; VPN support (IPsec/PPTP/L2TP/OpenVPN) + firewall

Integration & Outcomes

• Stable & secure connectivity: Reliable network operation even in remote industrial areas, with encrypted transmission complying with global data security standards.

• Cost-efficient deployment: Significantly reduces basic connectivity costs compared to high-end gateways, with quick on-site setup.

• Scalable fleet management: Supports centralized monitoring of distributed cabinets, simplifying oversight of large-scale deployments.

• Rugged reliability: Adapts to harsh on-site environments, ensuring uninterrupted operation with minimal maintenance.

Future: Connected & Self-Optimizing Ecosystem

1. AI + Digital Twin: Virtual replicas of cabinets will simulate operations and predict lifespan, while edge AI optimizes strategies in real time.

2. Multi-Energy Synergy: Cabinets will integrate with solar, wind, and EV chargers to form self-sustaining microgrids

3. Energy-as-a-Service (EaaS): IoT-enabled usage tracking will make shared storage and pay-per-use models more accessible, lowering entry barriers for small businesses.
