Extending SCADA to the Edge & Cloud

A DNP3 IoT gateway closes the gap between legacy field devices and modern cloud platforms. For utilities, power grids, water systems, and oil–gas networks, DNP3 remains the gold-standard protocol for reliable telecontrol. Yet traditional DNP3 systems lack cloud access, wide-area connectivity, and intelligent management. Bivocom industrial DNP3 IoT gateway products solve these challenges. Bivocom bring robust DNP3 communication into the IoT era with cellular connectivity, edge computing, and end-to-end security.

What Is DNP3?

DNP3 (Distributed Network Protocol 3) is an open, standardized industrial communication protocol formally specified as IEEE Std 1815. Built for SCADA and remote telecontrol, it follows a master-slave architecture optimized for reliable data exchange between central control centers and field devices such as RTUs, IEDs, PLCs, and smart sensors.

Core Working Principle of DNP3

Key Strengths of DNP3

1. High reliability with CRC checking, retransmission, and error correction

2. Event-driven reporting that reduces bandwidth usage

3. Strong data integrity for long-distance and noisy environments

4. Built-in file transfer for firmware, configuration, and log collection

5. Wide interoperability across RTUs, IEDs, PLCs, and meters


In short, DNP3 ensures field devices communicate safely and consistently. This makes it irreplaceable for power substations, water pipelines, and oilfield facilities.

Why Combine DNP3 with IoT?

Traditional DNP3 systems rely on private lines, serial cables, or local networks. This creates four critical limitations:

1. No cloud-based monitoring or centralized management

2. High cost for wired deployment in remote areas

3. Limited access to AI, big data, and predictive maintenance

4. Difficulty scaling across hundreds of distributed sites

By pairing DNP3 with IoT, operators gain lower operating costs, and intelligent automation. The DNP3 IoT gateway acts as the critical bridge.

How Bivocom DNP3 IoT Gateway Works

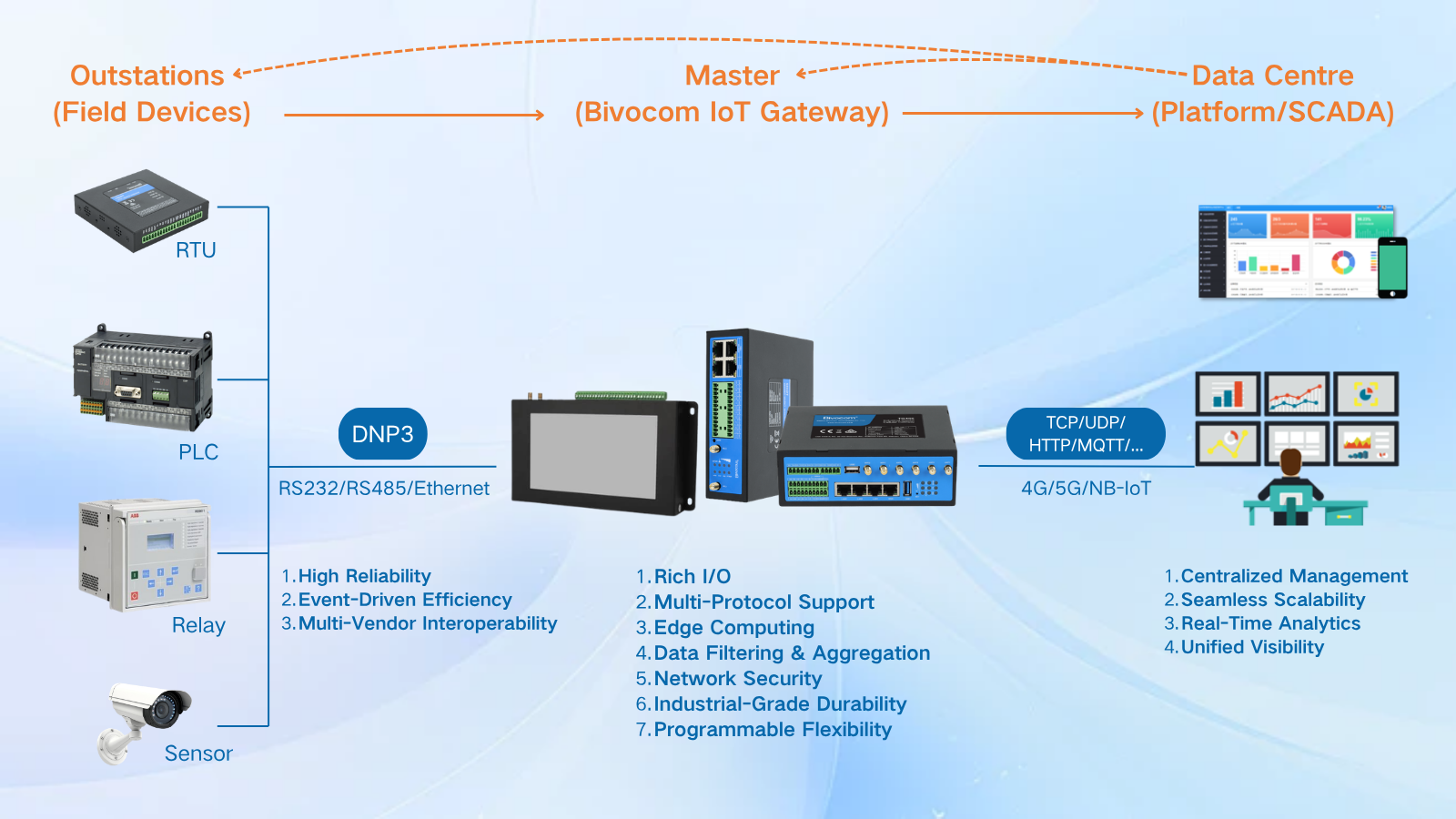

Bivocom delivers a complete three-layer architecture that preserves DNP3 reliability while enabling IoT intelligence.

1. Field Layer: Field devices use native DNP3 communication. These include RTUs, IEDs, relays, flow meters, and PLCs.

2. Edge Layer: Bivocom gateways act as a DNP3 master to collect data securely. They then convert DNP3 into IoT-friendly protocols such as MQTT, JSON, or TCP/IP. Key functions include:

• • DNP3 over RS232/RS485 and Ethernet

  • Protocol translation: DNP3 ↔ TCP/UDP/MQTT/HTTP/JSON

  • 4G/5G/NB-IoT cellular wide-area connectivity

  • Local edge processing and data filtering

  • Offline caching and automatic re-sync

  • Industrial security and reliable networking

3. Cloud Layer: Data arrives at cloud platforms, SCADA systems, or dashboards. Teams use real–time monitoring, alerts, reporting, and remote control to improve operations.

Bivocom Gateway for DNP3 IoT Solutions

Bivocom offers three specialized gateways tailored to DNP3 IoT deployments, each with unique strengths to match diverse project requirements.

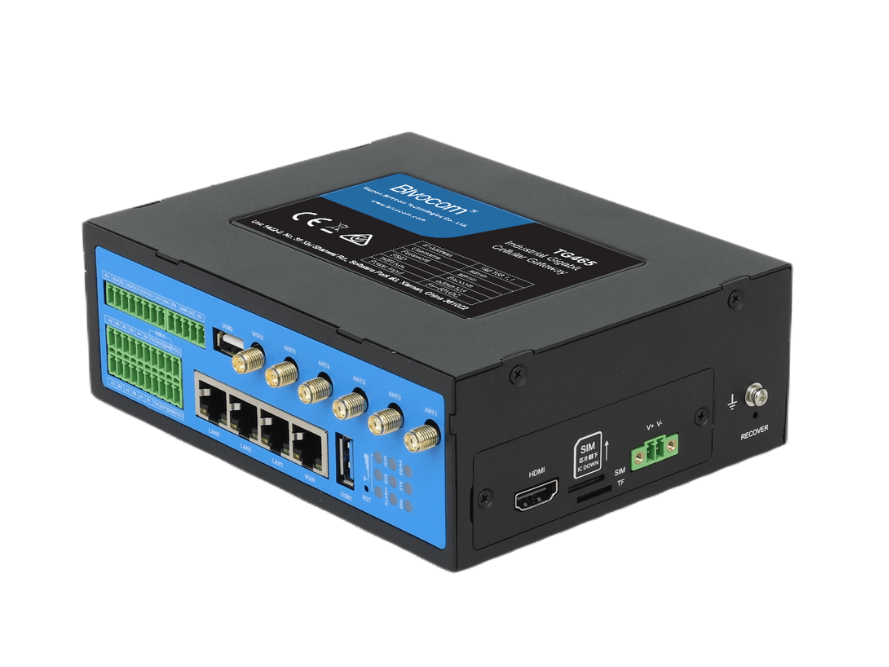

TG465 Programmable 5G Edge Gateway

• Processor: Quad-core 64-bit ARM Cortex-A55 (up to 2GHz) with NPU (1 TOPS) for AI/ML tasks

• Memory & Storage: 2GB DDR4 RAM (8GB option), 16GB eMMC Flash (128GB option), optional NVMe SSD (up to 2TB)

• Connectivity: 5G NR/4G LTE, 4x GbE RJ45, 6x RS485, 1x RS232, WIFI6 (option)

• I/O: 4x DI, 4x Relay Output, 2x Power Output (5-60VDC)

• Software: Bivocom OS/OpenWrt/Ubuntu, Python/C/C++ SDK, Docker container support

• DNP3 Capability: Native DNP3 master/client support (requires specialized firmware), compatible with DNP3 over TCP/IP; integrates with OPC UA, IEC101/104 for multi-protocol industrial environments

Key Focus & Use Cases: Designed for mission-critical, high-performance DNP3 deployments requiring edge AI, heavy data processing, or large-scale storage.  Ideal for smart grids, renewable energy plants, and industrial 4.0 facilities, and supports secondary development.

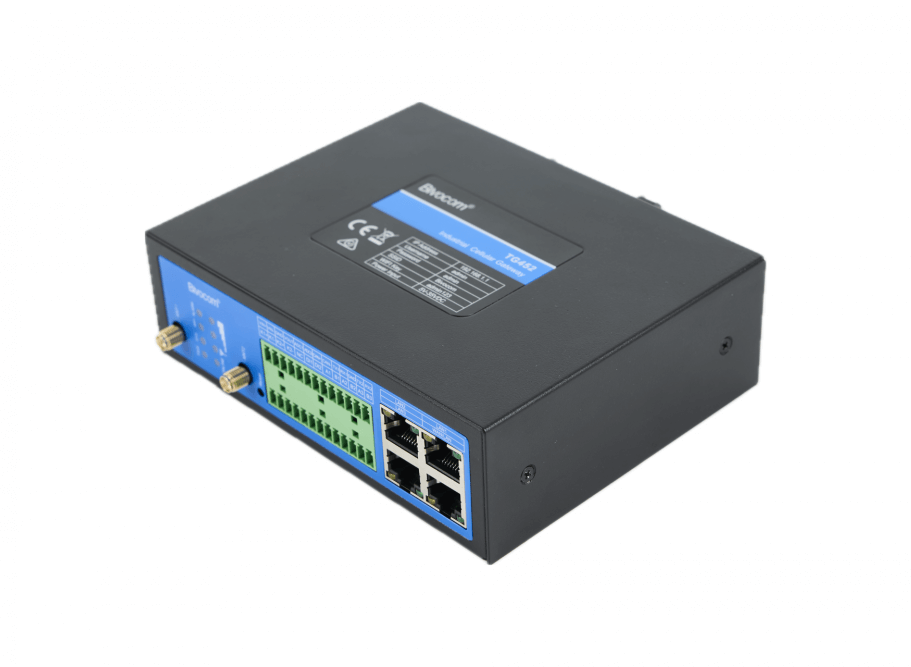

TG452 IoT Edge Gateway

• Processor: 32-bit ARM Cortex-A7 (528MHz)

• Memory & Storage: 256MB DDR3, 256MB Flash (extendable to 1GB), Micro SD slot (up to 32GB)

• Connectivity: 4G LTE CAT6/CAT4/NB-IoT, 4x 10/100M RJ45, 3x RS485, 2x RS232, WIFI (option)

• I/O: 2x DI, 2x Relay Output, 2x 12-bit ADC (4-20mA/0-5V)

• Software: OpenWrt Linux, Python/LUA SDK, VPN support (IPsec/OpenVPN)

• DNP3 Capability: DNP3 master/client support via customized firmware; optimized for lightweight DNP3 data collection and protocol conversion


Key Focus & Use Cases: Balances performance and cost for mid-scale DNP3 deployments. Perfect for water pump stations, pipeline monitoring, and HVAC automation where basic edge processing meets operational needs.

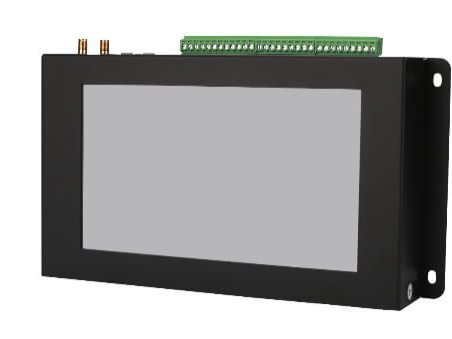

TG462/TG462S Touch Screen IoT Edge Gateway

• Processor: 32-bit ARM Cortex-A7 (528MHz)

• Memory & Storage: 256MB DDR3, 256MB Flash (TG462) / 1GB Flash (TG462S), Micro SD slot (up to 32GB)

• Connectivity: 4G LTE CAT6/CAT4, 2x 10/100M RJ45, 3x RS485, 4x RS232, WIFI (option)

• I/O: 4x DI, 8x 12-bit ADC, 4x Relay Output, 5x Power Output (5V/9V/12V)

• Unique Feature: 7-inch HD touch screen (TG462S) for on-site DNP3 data visualization and maintenance

• Software: OpenWrt Linux, Python/Node-RED support (custom firmware required)

• DNP3 Capability: DNP3 master/client support via customized firmware; touch screen enables direct field configuration of DNP3 rules

Key Focus & Use Cases: Built for field-centric DNP3 deployments where on-site monitoring and quick maintenance are critical. Ideal for wastewater treatment plants, gas stations, and smart city infrastructure—the touch screen eliminates external laptops for configuration and troubleshooting.

Core Advantages of Bivocom DNP3 IoT Gateways

1. Multi-Protocol Acquisition & Translation: Aggregates data from Modbus, serial, and analog devices via RS232/RS485, Ethernet, and cellular. Translates in real time to DNP3 objects with millisecond latency.
2. Reliability: Dual SIMs, automatic carrier failover, and VPN tunnels ensure uninterrupted communication in remote or harsh environments.
3. Cost Efficiency: Cellular connectivity cuts wired infrastructure costs; remote configuration and OTA updates reduce on-site visits.
4. Unified Management & Scalability: Centralizes monitoring of hundreds of DNP3 sites on a single cloud platform for full remote visibility, with seamless scalability to add new sites and devices.
5. Security: Secure boot, TLS/DTLS encryption, and DNP3 Secure Authentication prevent command interception and forgery—critical infrastructure grade.
6. Edge Intelligence: Filters noise, aggregates values, and executes local control logic. During network outages, data caches automatically and synchronizes upon reconnection—no loss, no intervention.

Industry Applications

DNP3 is the foundational SCADA protocol for critical infrastructure. Bivocom DNP3 IoT gateways extend it to the cloud, delivering real-time visibility and remote management without replacing legacy field devices.

Smart Grid and Substation Automation: Bivocom gateways connect directly to substation RTUs and IEDs, aggregating breaker status, load readings, and alarms for secure cloud delivery. Real-time fault detection and isolation (FLISR) enable wide-area visibility and predictive insights—reducing outage duration without replacing field-proven equipment.

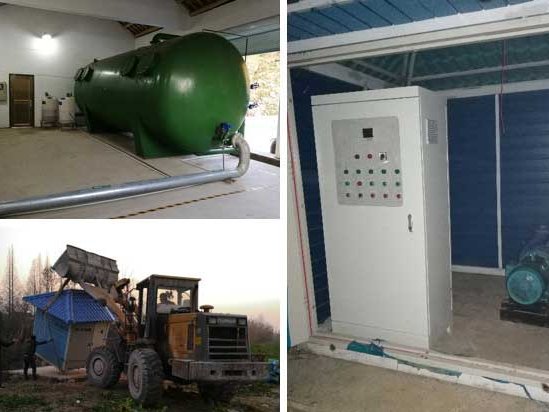

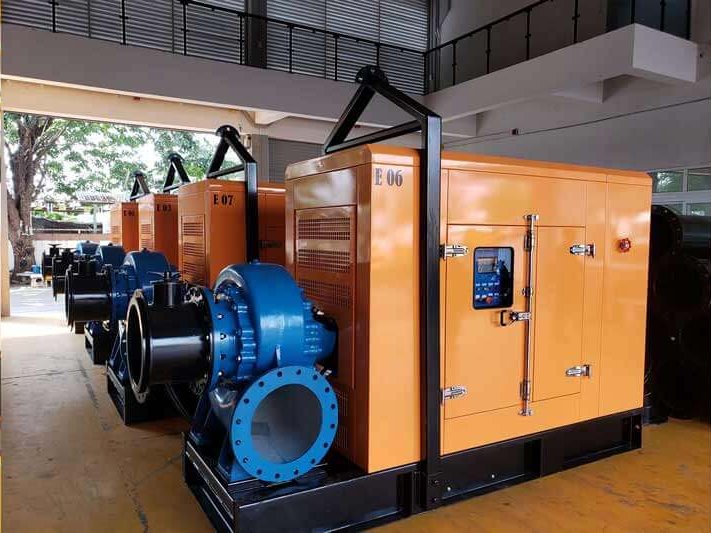

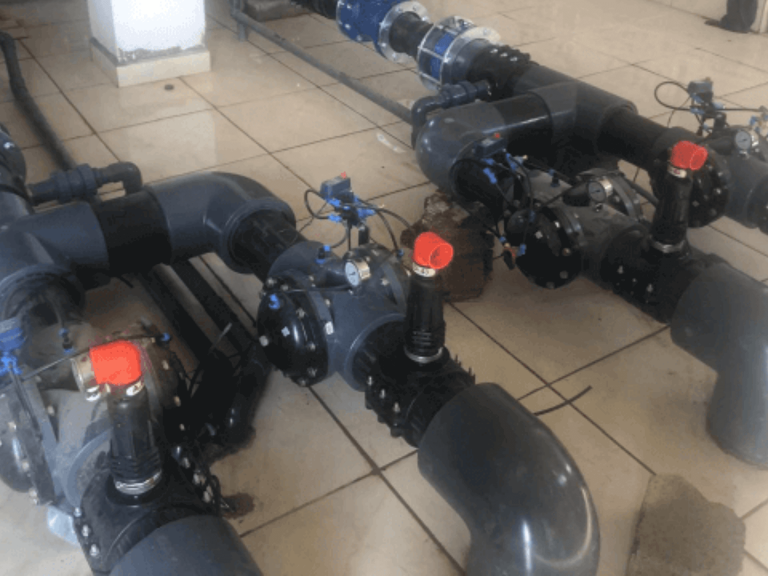

Water and Wastewater Management: Pump stations and treatment plants often use Modbus or proprietary protocols, while central control mandates DNP3. Bivocom gateways perform on-site protocol conversion—Modbus to DNP3, serial to IP—and transmit over cellular where wired links are impractical. Tank levels, flow rates, and pump status appear on a single dashboard; cloud-based leak detection triggers instant alerts.

Oil and Gas Pipeline Monitoring: Pipelines stretch hundreds of kilometers through remote terrain. Bivocom gateways add cellular backhaul and dual-SIM failover to DNP3-based pressure sensors and flow computers. Pressure drops trigger immediate unsolicited reports to the control center. During outages, the gateway caches events locally and auto-syncs when restored—zero data loss, zero truck rolls.

About Bivocom

Bivocom le’s DNP3 IoT integration isn’t just a connection—it’s a transformation of critical infrastructure. We merge DNP3’s trusted reliability with IoT’s cloud intelligence, eliminating silos, costs, and legacy limits—no device replacement, no operational disruption, no security compromises.

• Engineers and integrators: Stop wrestling with protocol mismatches and dead zones. We handle translation, failover, and edge processing—for faster delivery, fewer truck rolls.
• Operations teams: Manage hundreds of DNP3 sites from one dashboard. Monitor health, push configs, receive alerts—without leaving your desk.
• Utility and industrial enterprises: Extend legacy DNP3 investments, embrace digital transformation. Unlock predictive maintenance and real-time analytics—no rip-and-replace.

Ready to Elevate Your SCADA to the Cloud?
The future of critical infrastructure runs on DNP3—extended by Bivocom IoT intelligence. Contact [email protected] to discuss your deployment, request a demo, or explore how our gateways can bring your remote assets online.
